Yamaha Outboard Parts - ELECTRICAL 5 - ME372STIP1 (2007) | Flood Marine

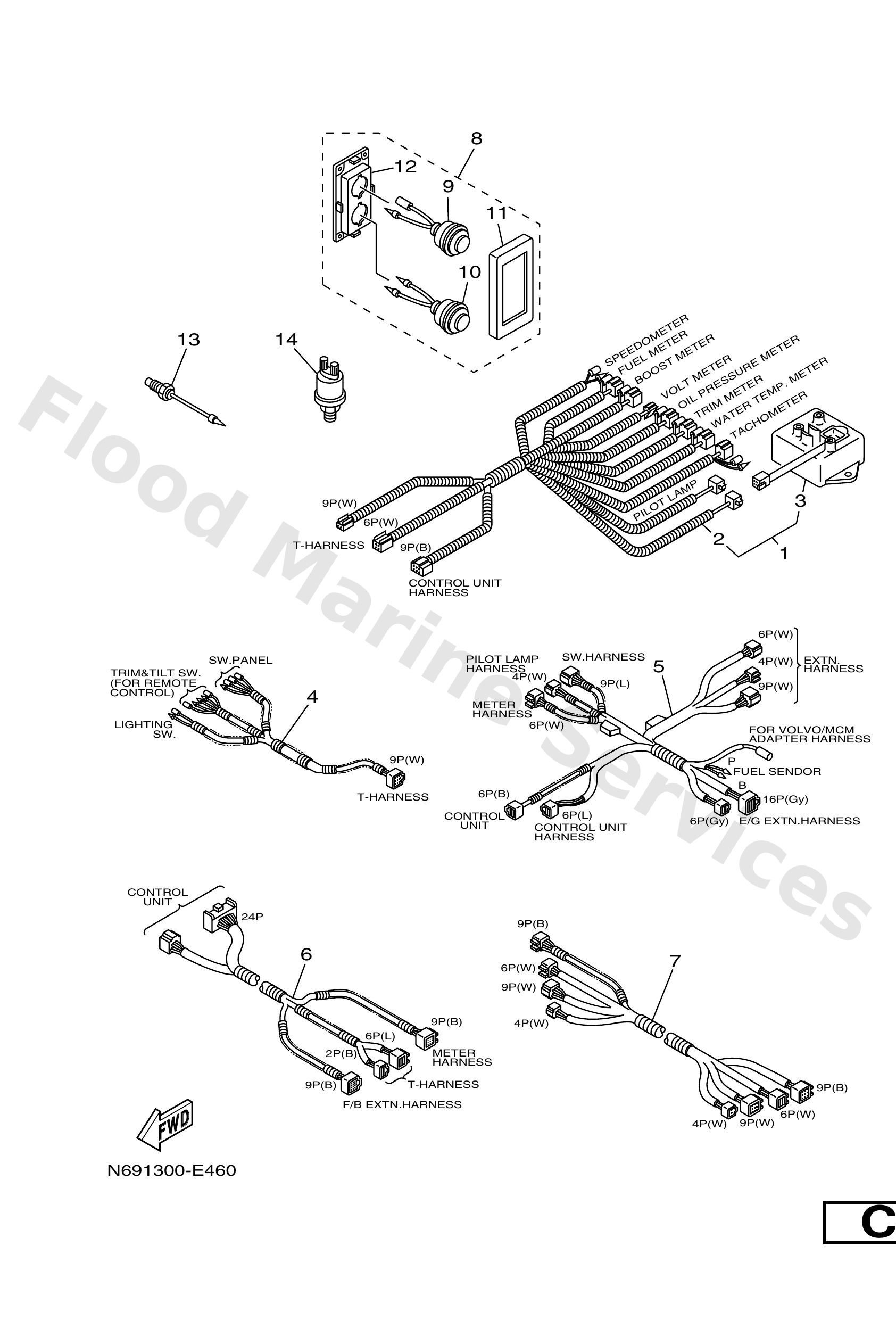

Diagram: ELECTRICAL 5

Diagram

Parts List

Reference
Description
Price


2
11
6Yf-8357X-10
Loading…

↗
3
6YF8537010
Resistor assembly
Loading…

↗
4
6YF82580E0
Wire harness assembly 2
Loading…

↗
6
6YF8258652
Extension Wireharness
Loading…

↗
9
6X18187000
Starting switch assembly (black)
Loading…

↗
11
2
N64-83510-00
Loading…

↗
12
1
6Yf-82580-C0
Loading…

↗
13
14 ER ER
D Om Te
Loading…

↗
13
6TA8359110
Thermo unit
Loading…

↗
