Yamaha Outboard Parts - ELECTRICAL 5 - VF250XB (2025) | Flood Marine

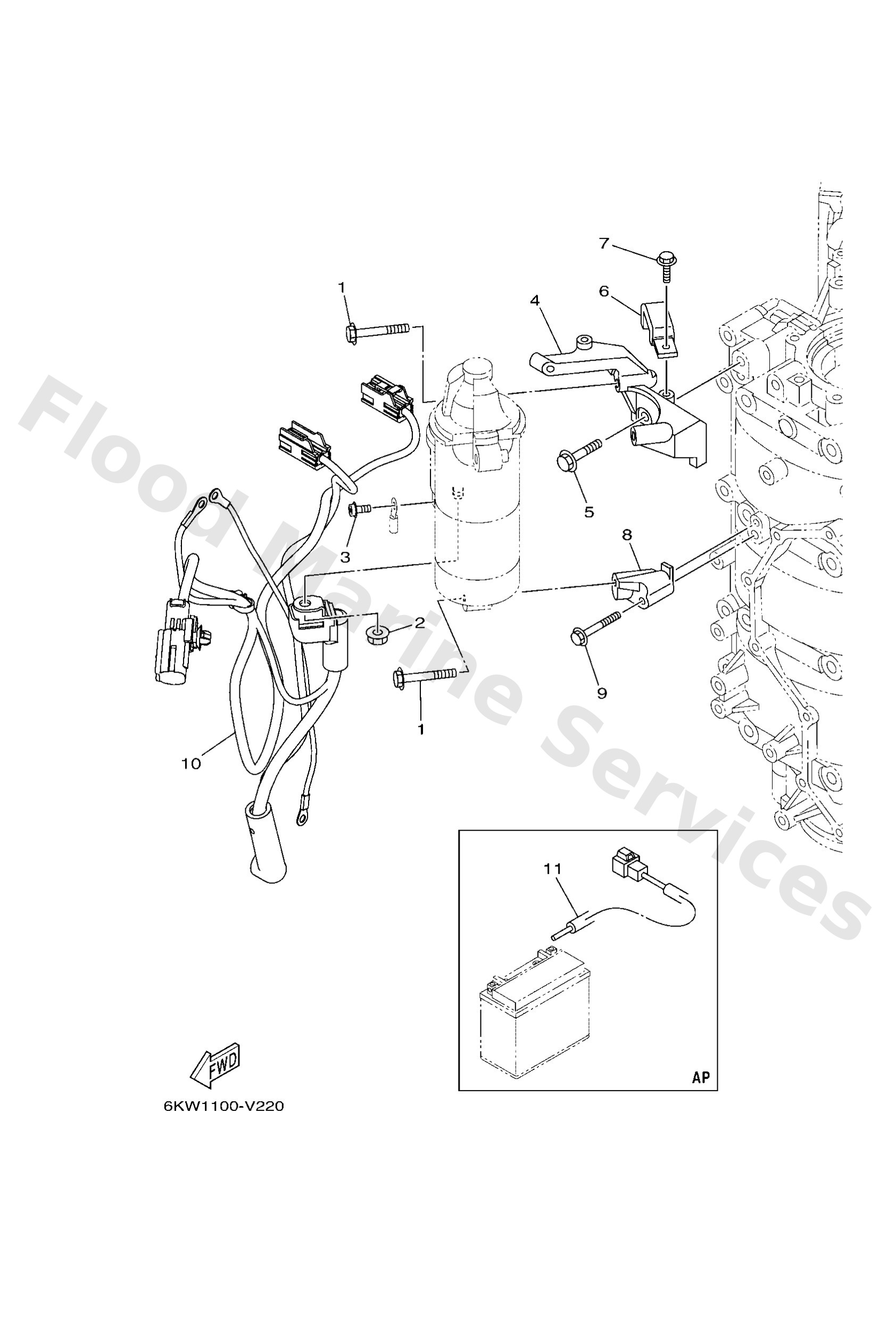

Diagram: ELECTRICAL 5

Diagram

Parts List

Reference
Description
Price


1
9751308545
Bolt, with washer
Loading…

↗
2
9017908003
Nut
Loading…

↗
3
9798504308
Screw, with washer
Loading…

↗
4
6CB8182202
Bracket, starting motor
Loading…

↗
5
9010508M87
Bolt, washer based
Loading…

↗
6
6CB8144300
Clamp, lead 1
Loading…

↗
7
95D9506016
Bolt, flange deep recess
Loading…

↗
8
6CB81823A0
Stay, starting motor
Loading…

↗
9
9010506151
Bolt, flange
Loading…

↗
10
6KW8259M00
Wire harness assembly 2
Loading…

↗
11
6KW8194900 AP
Wire, lead (isolator cable)
Loading…

↗
