Yamaha Outboard Parts - ELECTRICAL 6 - XF425NSA7 (2020) | Flood Marine

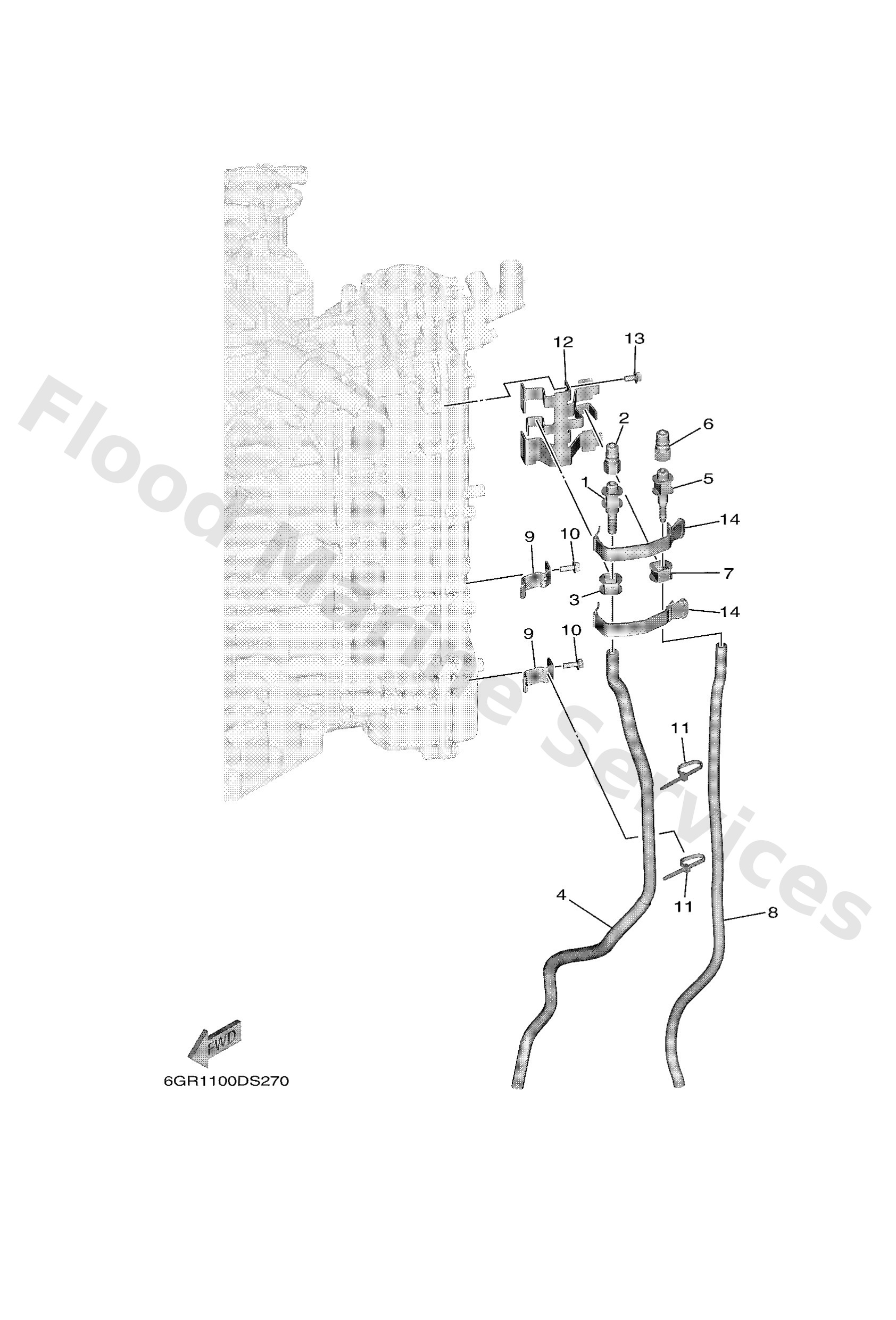

Diagram: ELECTRICAL 6

Diagram

Parts List

Reference
Description
Price


1
6GR4539400
Hose, fitting 1
Loading…

↗
2
6GR4539300
Coupler
Loading…

↗
3
6GR8166200
Cover, connecter
Loading…

↗
4
6GR4383E00
Hose, oil 2
Loading…

↗
5
6GR4539500
Hose, fitting 2
Loading…

↗
7
6GR8259900
Cover, connecter
Loading…

↗
8
6GR2318K00
Hose, air 2
Loading…

↗
9
6GR8144300
Clamp, lead 1
Loading…

↗
10
95D9506016
Bolt, flange deep recess
Loading…

↗
11
9046513M97
Clamp
Loading…

↗
12
6GR8184500
Plate
Loading…

↗
13
95D9506012
Bolt, flange deep recess
Loading…

↗
14
6GR8213100
Band, battery
Loading…

↗
