Yamaha Outboard Parts - ELECTRICAL SWITCH PANEL SINGLE - Rigging Parts (2006) | Flood Marine

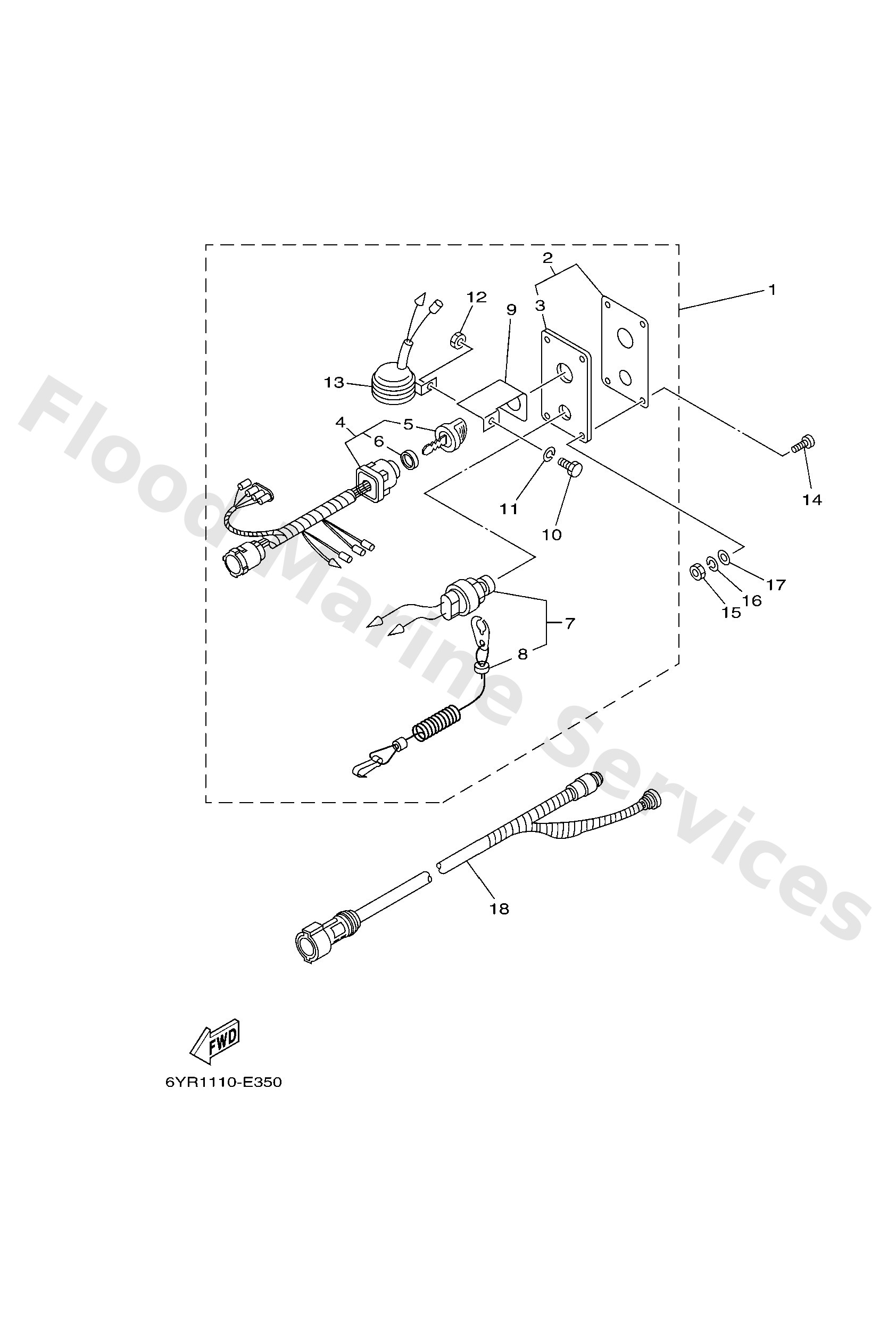

Diagram: ELECTRICAL SWITCH PANEL SINGLE

Diagram

Parts List

Reference
Description
Price


1
7048257008 WITH CHOKE
Panel switch assembly
Loading…

↗
2
7048257102
Panel, switch
Loading…

↗
3
6R58258801
Plate
Loading…

↗
4
7048251007
Main switch assembly
Loading…

↗
5
7038257700
Cap, key
Loading…

↗
6
6K18253200
Cap
Loading…

↗
7
6888257501
Engine stop switch assembly
Loading…

↗
8
6828255600
Lanyard, stop switch
Loading…

↗
9
64D8258100
Stay, cord clamp
Loading…

↗
10
9730305012
Bolt, hexagon
Loading…

↗
11
9290305100
Ybs67-5 washer, spring
Loading…

↗
12
9530305700
Nut (656)
Loading…

↗
13
6888338311
Buzzer
Loading…

↗
14
9014905M05
Screw(6k0)
Loading…

↗
15
9538005600
Nut, hexagon (663)
Loading…

↗
16
9299005100
Ybs67-5 washer, spring
Loading…

↗
17
9299005600
Washer, plain (646)
Loading…

↗
18
6K18258A40 UR (10P)
Extension, wire harness
Loading…

↗
18
61B8258A01 UR (10P)
Extension, wire harness
Loading…

↗
18
6X38258A00 UR (10P)
-
Loading…

↗
18
6X38258A10 UR (10P)
-
Loading…

↗
