Yamaha Outboard Parts - ELECTRICAL WIRE HARNESSES - Rigging Parts (2007) | Flood Marine

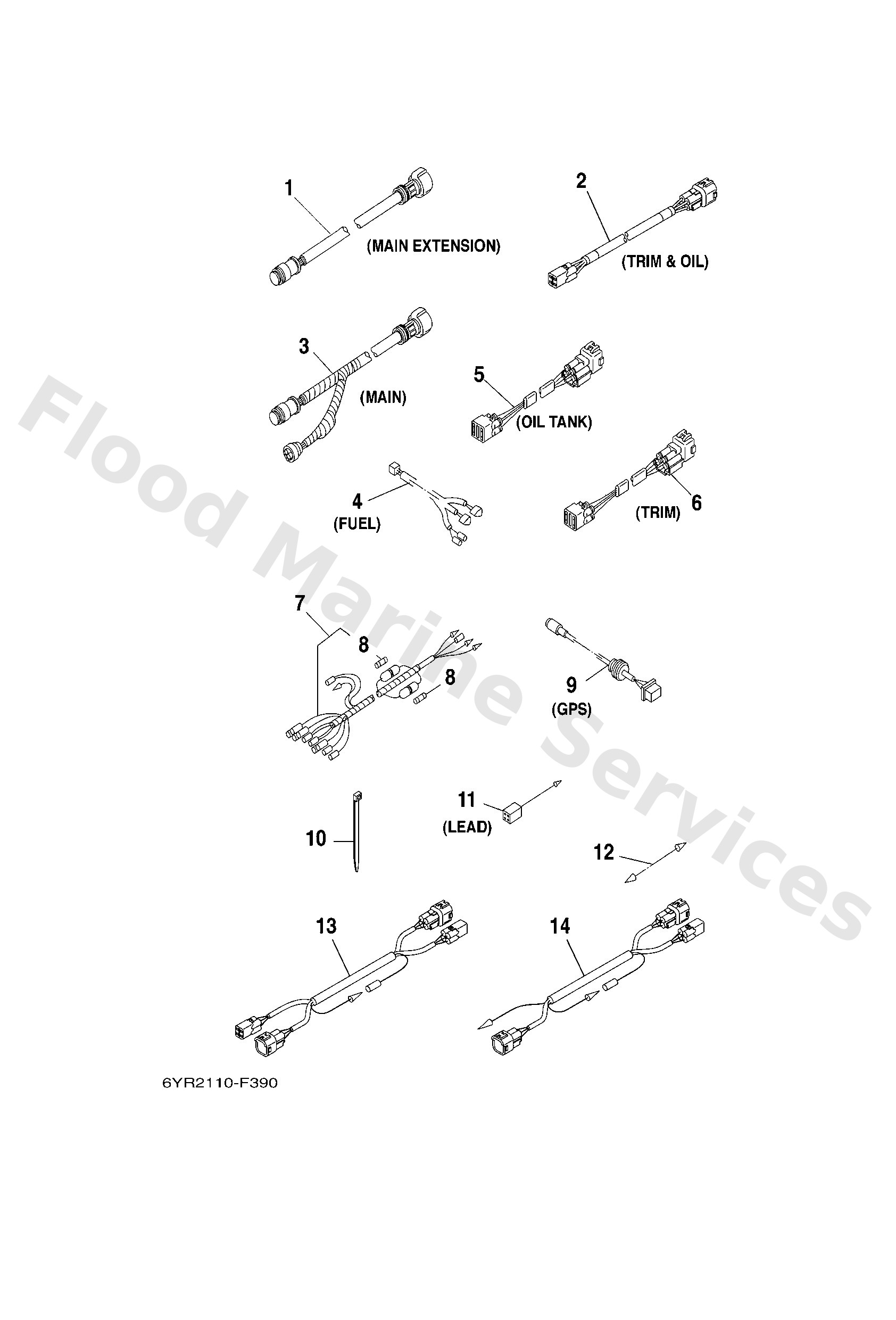

Diagram: ELECTRICAL WIRE HARNESSES

Diagram

Parts List

Reference

Description

Price

1

6888258A20 UR EXTENSION,MAIN (10P)

10p main harness mec 2m (6ft)

Loading…

1

6888258A30 UR EXTENSION,MAIN (10P)

10p main harness mec 3m (10ft)

Loading…

1

7038258A00 UR 7P TO 10P ADAPTER

Extension, wire harness

Loading…

1

6888258A10 UR EXTENSION,MAIN (10P)

10p main harness mec 2m (7ft)

Loading…

2

6Y58365300 UR TRIM & OIL GAUGE 4P,5M

Loading…

2

6Y58365310 UR TRIM & OIL GAUGE 4P,6M

Loading…

2

6Y58365320 UR TRIM & OIL GAUGE 4P,7M

Loading…

2

6Y58365330 UR TRIM & OIL GAUGE 4P,8M

Loading…

2

6Y58365340 UR TRIM & OIL GAUGE 4P,9M

Loading…

3

6888258A50 UR MAIN (10P)

10p main harness mec 5m (16ft)

Loading…

3

6X38258A10 UR MAIN (10P)

Loading…

3

6X38258A00 UR MAIN (10P)

Loading…

3

6K18258A40 UR MAIN (10P)

Extension, wire harness

Loading…

3

61B8258A01 UR MAIN (10P)

Extension, wire harness

Loading…

3

6888258A60 UR MAIN (10P)

10p main harness mec 6m (20ft)

Loading…

4

6Y583553F1

Loading…

5

6R38572130 UR OIL TANK (4P)

Loading…

5

6R38572180 UR OIL TANK (4P)

Loading…

5

6R38572150 UR OIL TANK (4P)

Loading…

6

6R38255330 UR TRIM GAUGE (4P)

Loading…

6

6R38255350 UR TRIM GAUGE (4P)

Loading…

6

6R38255370 UR TRIM GAUGE (4P)

Extension, wire lead (for trim

Loading…

6

6R38255380 UR TRIM GAUGE (4P)

Loading…

7

6Y583553N0

Wire, lead (l=2.5m)

Loading…

8

1E68215100

Loading…

9

6Y587122S0 FOR GPS CONNECTION

Cord assembly 1

Loading…

10

9046511M10

Loading…

11

6Y58214900 UR Y-LEAD

Loading…

11

6Y58211700 UR Y-LEAD

Loading…

11

6Y58252100 UR Y-LEAD

Loading…

12

7038253100

Loading…

13

6Y58533500

Adapter, interface

Loading…

14

6Y58533510

Adapter, interface

Loading…
