F130AET (2015)
EXHAUST

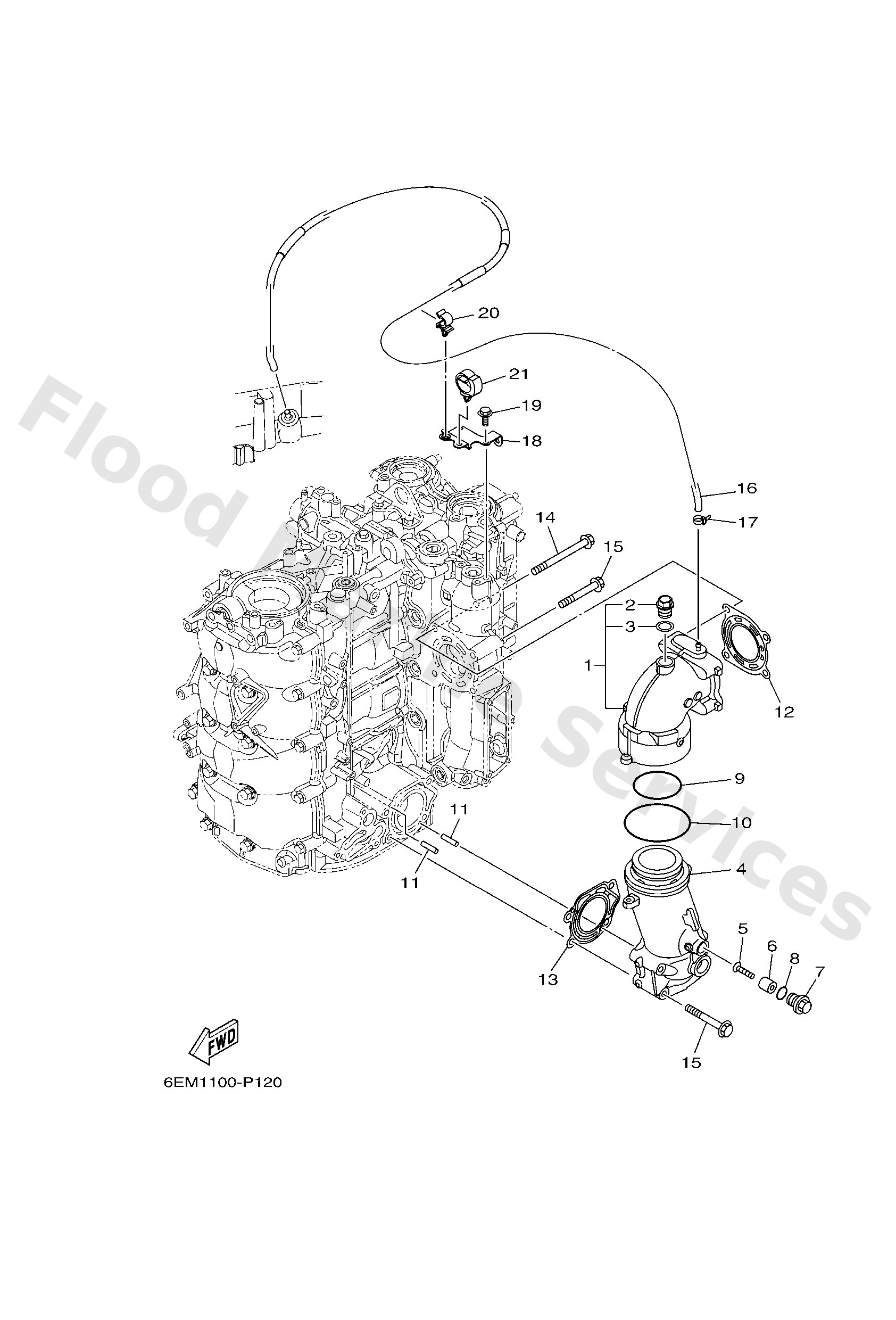

Diagram: EXHAUST
Parts List
Reference
Description
Price
1
6EK1461500
Joint, exhaust 1
Loading…
↗
2
9034018M09
Plug, straight screw
Loading…
↗
3
90201186F1
Washer, plate (22f)
Loading…
↗
4
6EK1462500
Joint, exhaust 2
Loading…
↗
5
9878005025
Ybs53-525 screw,flat head
Loading…
↗
6
6EK1132500
Anode
Loading…
↗
7
6G811197A0
Plug, blind
Loading…
↗
8
9321013M63
O-ring (6g8)
Loading…
↗
9
9321064001
O-ring
Loading…
↗
10
9321084001
O-ring
Loading…
↗
11
9169050014
Pin, spring (647)
Loading…
↗
12
6EK4111400
Gasket, exhaust outer cover
Loading…
↗
13
6EK4112400
Gasket, exhaust outer cover
Loading…
↗
14
9010508247
Bolt, flange
Loading…
↗
15
9010508220
Bolt, flange
Loading…
↗
16
6EM4254200
Pipe
Loading…
↗
17
9046511M10
Clamp
Loading…
↗
18
6EK8239800
Plate 3
Loading…
↗
19
9589506012
Bolt, flange deep recess
Loading…
↗
20
9046409129
Clamp(3ld)
Loading…
↗
21
9046412183
Clamp(jn2)
Loading…
↗
