Yamaha Outboard Parts - EXHAUST 1 - ME422STIP2 (2013) | Flood Marine

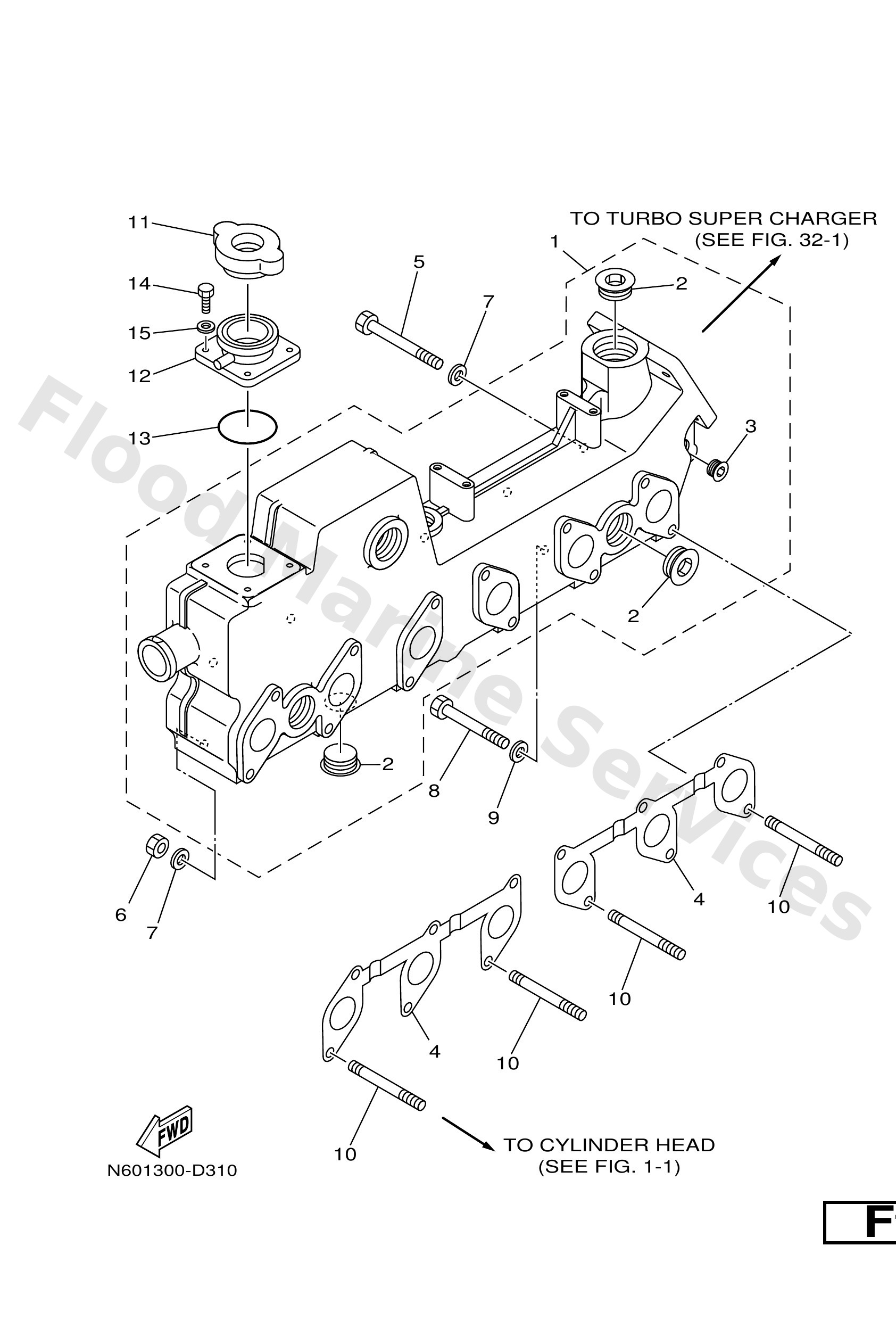

Diagram: EXHAUST 1

Diagram

Parts List

Reference
Description
Price


1
N514114000
Exhaust manifold comp.
Loading…

↗
2
9034032044
Plug, straight screw (706)
Loading…

↗
2
13
-
Loading…

↗
3
8
-
Loading…

↗
5
9702710095
Bolt
Loading…

↗
6
9531710600
Nut(6td)
Loading…

↗
7
9290710600
Washer(6ta)
Loading…

↗
10
9561710380
Bolt, stud
Loading…

↗
11
8A22181500
Cap, radiator
Loading…

↗
12
70R1252001
Filler neck comp
Loading…

↗
14
2
N64-83510-00
Loading…

↗
14
9702706016
Bolt, hexagon
Loading…

↗
15
9290706600
Washer(6ta)
Loading…

↗
15
N601300D310
(See Fig. 1-1)
Loading…

↗
