ME422STIP2 (2013)
EXHAUST 2

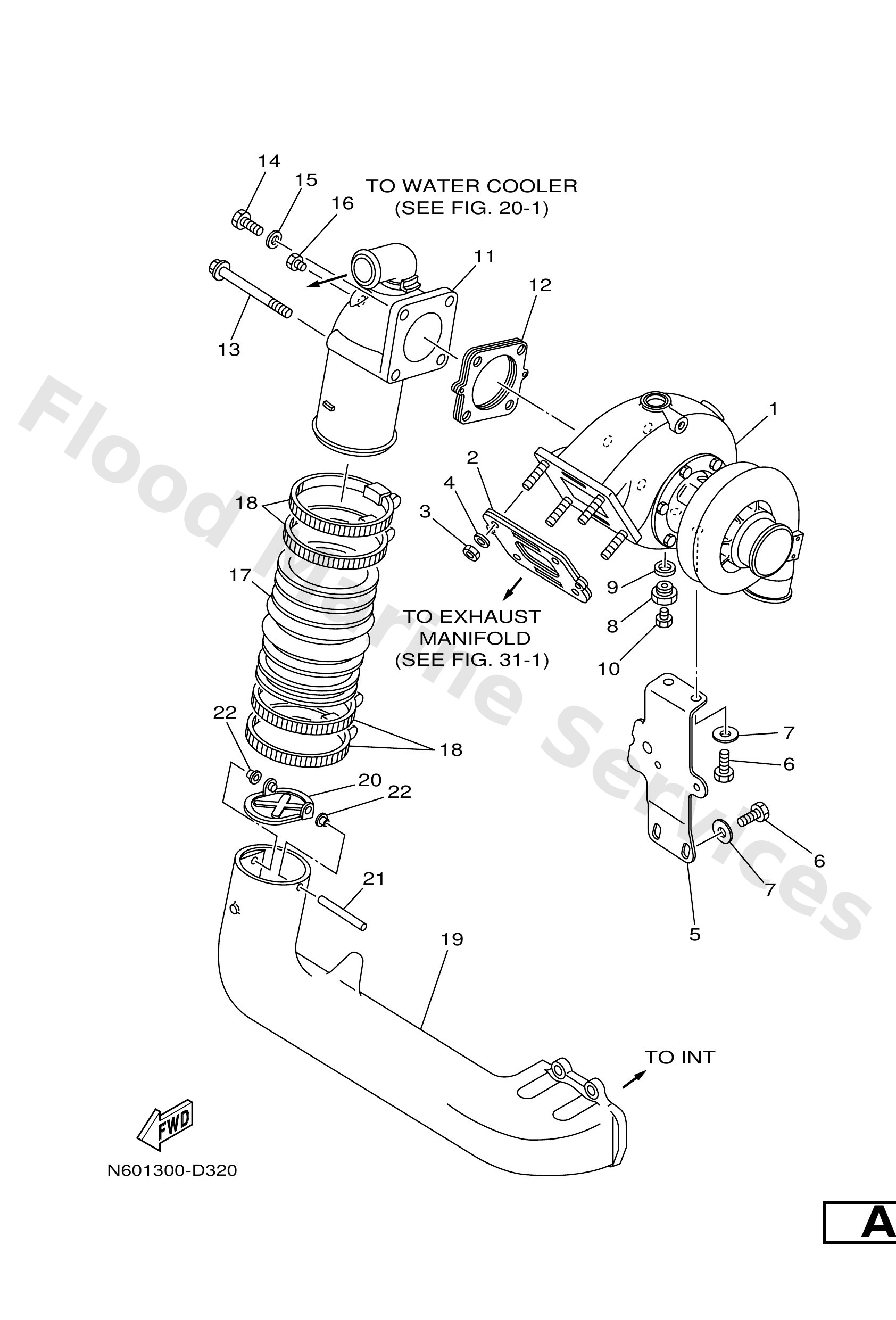

Diagram: EXHAUST 2
Parts List
Reference
Description
Price
3
9538010600
Nut(624)
Loading…
↗
5
6TA1461L01
Braket, 1-1
Loading…
↗
6
17
97027-10025
Loading…
↗
6
9702710025
Bolt(6td)
Loading…
↗
7
9020110774
Washer, plate (3l6)
Loading…
↗
7
16
92907-08600
Loading…
↗
8
6TA1499100
Plug,screw
Loading…
↗
9
9043024239
Gasket
Loading…
↗
11
N601460200
Exhaust pipe comp.
Loading…
↗
12
4
6Yf-82588-00
Loading…
↗
15
1
6Yf-82580-C0
Loading…
↗
15
9290710600
Washer(6ta)
Loading…
↗
17
12
92990-10100
Loading…
↗
18
3
-
Loading…
↗
18
9046099M19
Hose clamp assembly
Loading…
↗
19
6TA1461101
Pipe, exhaust 1
Loading…
↗
21
20
-
Loading…
↗
21
6TA1474500
Shaft
Loading…
↗
22
6T01466400
Grommet, water shut
Loading…
↗
