XF375NSA (2018)
EXHAUST 2

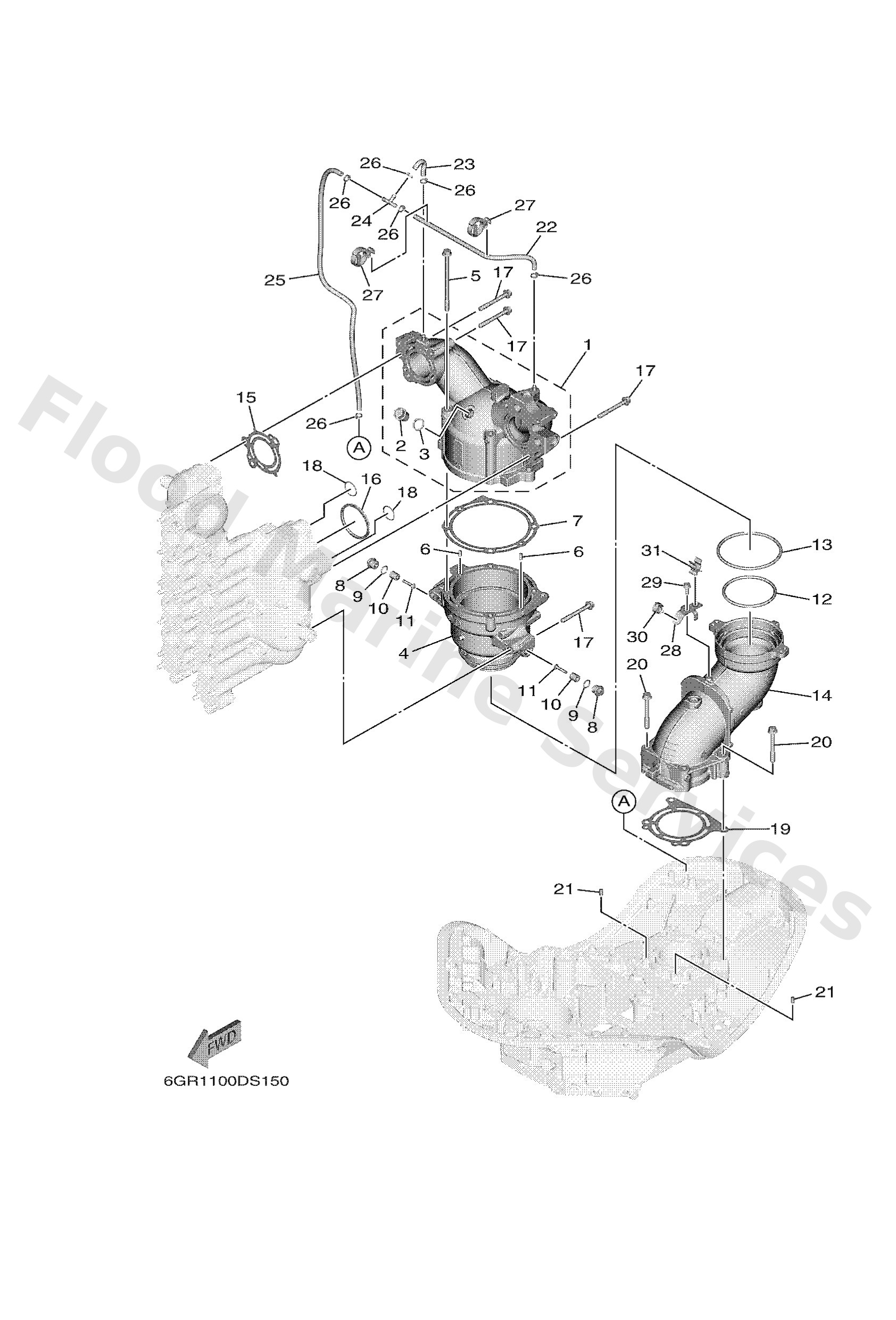

Diagram: EXHAUST 2
Parts List
Reference
Description
Price
1
6GR14635009S
Joint, exhaust 3
Loading…
↗
2
9034018M09
Plug, straight screw
Loading…
↗
3
90201186F1
Washer, plate (22f)
Loading…
↗
4
6GR14645009S
Joint, exhaust 4
Loading…
↗
5
9010508268
Bolt, flange
Loading…
↗
6
9360612019
Pin, dowel (614)
Loading…
↗
7
6GR4112400
Gasket, exhaust outer cover
Loading…
↗
8
6G811197A0
Plug, blind
Loading…
↗
9
9321013M63
O-ring (6g8)
Loading…
↗
10
6G81132500
Anode
Loading…
↗
11
9898005025
Screw, panhead (a93)
Loading…
↗
12
9321090001
O-ring
Loading…
↗
13
9321110001
O-ring
Loading…
↗
14
6GR14656009S
Joint, exhaust 5
Loading…
↗
15
6GR4111400
Gasket, exhaust outer cover
Loading…
↗
16
6GR1464300
Gasket 3
Loading…
↗
17
9010508220
Bolt, flange
Loading…
↗
18
9321026003
O-ring
Loading…
↗
19
6GR4113400
Gasket, exhaust manifold
Loading…
↗
22
9044509104
Hose (l1500)
Loading…
↗
23
6GR1248200
Pipe 2
Loading…
↗
24
6882437800
Pipe, joint
Loading…
↗
25
9044509047
Hose
Loading…
↗
26
9046511M10
Clamp
Loading…
↗
27
9046429001
Clamp
Loading…
↗
28
6GR8258800
Plate
Loading…
↗
29
9589506016
Bolt, flange deep recess
Loading…
↗
30
9046413249
Clamp
Loading…
↗
31
9046412015
Clamp
Loading…
↗
