Yamaha Outboard Parts - Electric Motor - 175AETOL (1986) | Flood Marine

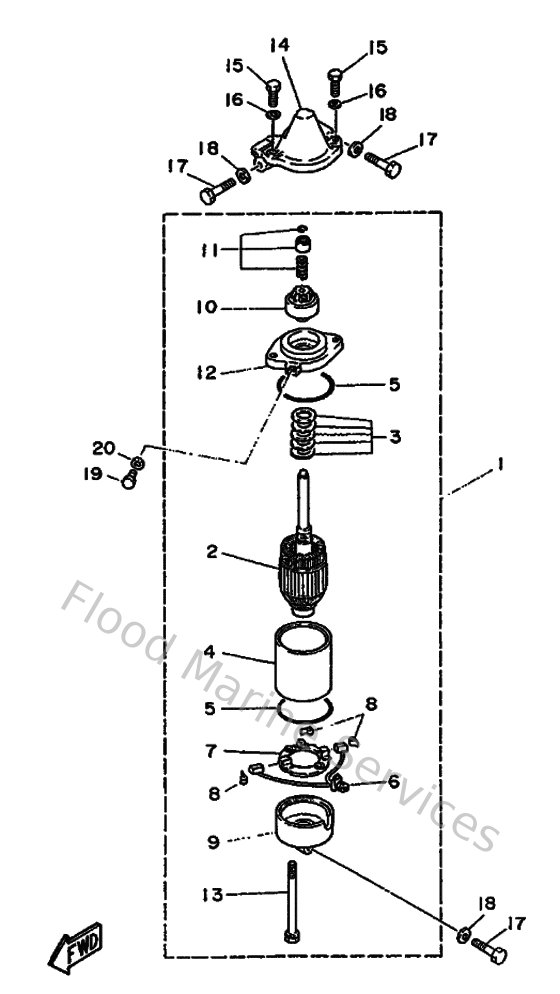

Diagram: Electric Motor

Diagram

Parts List

Reference
Description
Price


1
6E5818001100
Starting motor assembly
Loading…

↗
2
6E5818501000
Armature assembly
Loading…

↗
3
6E5818091000
Washer Kit
Loading…

↗
4
6E5818101000
Stator assembly
Loading…

↗
5
6E5819481000
Bracket
Loading…

↗
6
6E5818011000
Brush ass'y
Loading…

↗
7
6E5818401000
Brush holder ass'y
Loading…

↗
8
6E5818131000
Spring Brush
Loading…

↗
9
6E5818201000
Rear Bracket assembly
Loading…

↗
10
6E5818071100
Pinion assembly
Loading…

↗
11
6E5818571000
Retainer
Loading…

↗
12
6E5818301000
Front Bracket assembly
Loading…

↗
13
6E5818261000
Bolt
Loading…

↗
14
6E5818220298
Bracket, starting motor
Loading…

↗
15
973130802500
Bolt (682)
Loading…

↗
16
929030860000
Washer, plain (663)
Loading…

↗
17
970130802500
Bolt (682)
Loading…

↗
19
973950801600
Bolt
Loading…

↗
20
929900860000
Washer, plain (663)
Loading…

↗
