Yamaha Outboard Parts - Electric Motor - 225AETOL (1987) | Flood Marine

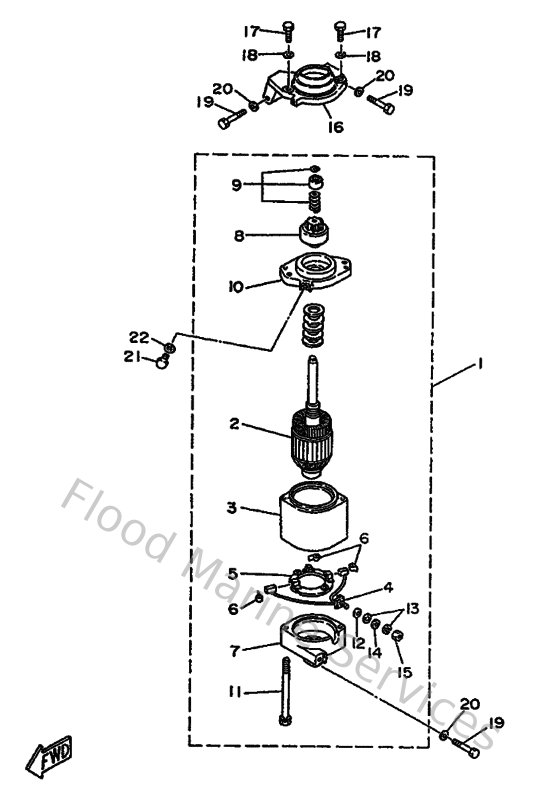

Diagram: Electric Motor

Diagram

Parts List

Reference
Description
Price


1
6K7818001000
Starting motor assy
Loading…

↗
4
6K7818011000
Brush Set
Loading…

↗
5
6K7818401000
Brush holder assy
Loading…

↗
6
6E5818131000
Spring Brush
Loading…

↗
9
6E5818571000
Retainer
Loading…

↗
11
6K7818261100
Bolt
Loading…

↗
12
6E58182E1000
Washer, spring
Loading…

↗
13
6E58182F1000
Washer,plain
Loading…

↗
14
6E58182A1000
Nut
Loading…

↗
15
6E58182K1000
Nut
Loading…

↗
16
6K7818220094
Bracket, starting motor
Loading…

↗
17
970130802500
Bolt (682)
Loading…

↗
18
929030860000
Washer, plain (663)
Loading…

↗
19
973130804500
Bolt
Loading…

↗
20
929901010000
Ybs67-10 washer, spring
Loading…

↗
21
973950801600
Bolt
Loading…

↗
22
929900860000
Washer, plain (663)
Loading…

↗
