30AMH (1985)
Electric Motor

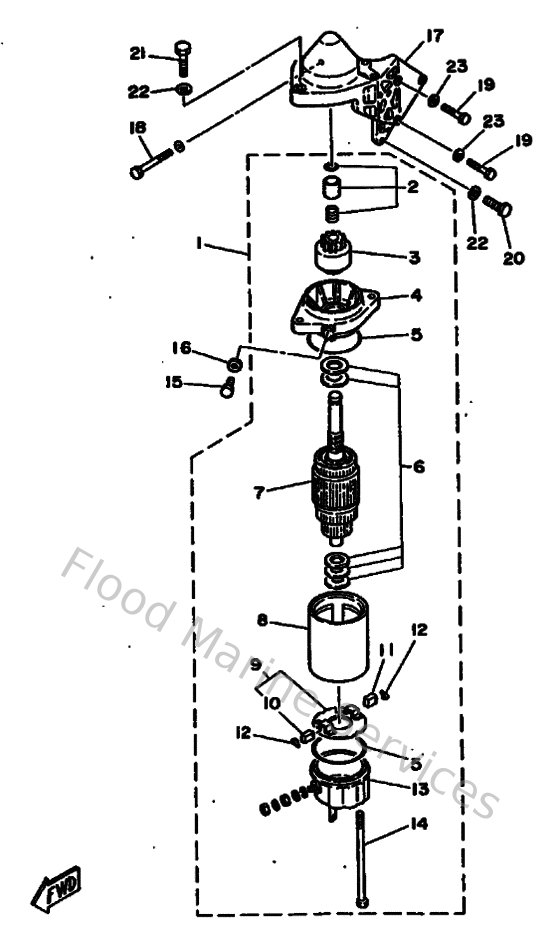

Diagram: Electric Motor
Parts List
Reference
Description
Price
1
689818001200
Starting motor assembly
Loading…
↗
2
689818571100
Pinion stopper set
Loading…
↗
3
689818071200
Pinion assembly
Loading…
↗
4
689818301100
Front cover ass'y
Loading…
↗
5
689818471100
O-ring
Loading…
↗
6
689818091100
Washer kit
Loading…
↗
7
689818501100
Armature assembly
Loading…
↗
8
689818101100
Stator ass'y
Loading…
↗
9
689818401100
Brush holder assembly
Loading…
↗
10
689818121100
Brush 2
Loading…
↗
11
689818111100
Brush 1
Loading…
↗
12
689818131000
Spring, brush
Loading…
↗
13
689818201100
Rear cover ass'y
Loading…
↗
14
689818261000
Bolt
Loading…
↗
15
973130801200
Bolt(62e)
Loading…
↗
16
929901010000
Ybs67-10 washer, spring
Loading…
↗
17
689157724094
Stay 2
Loading…
↗
18
973130605000
Bolt, hexagon
Loading…
↗
19
970800603000
Bolt(jf7)
Loading…
↗
20
973130802000
Bolt(6td)
Loading…
↗
21
970130803000
Bolt
Loading…
↗
22
929030860000
Washer, plain (663)
Loading…
↗
23
929030660000
Washer, plain (646)
Loading…
↗
