115AETOL (1987)
Electric Parts

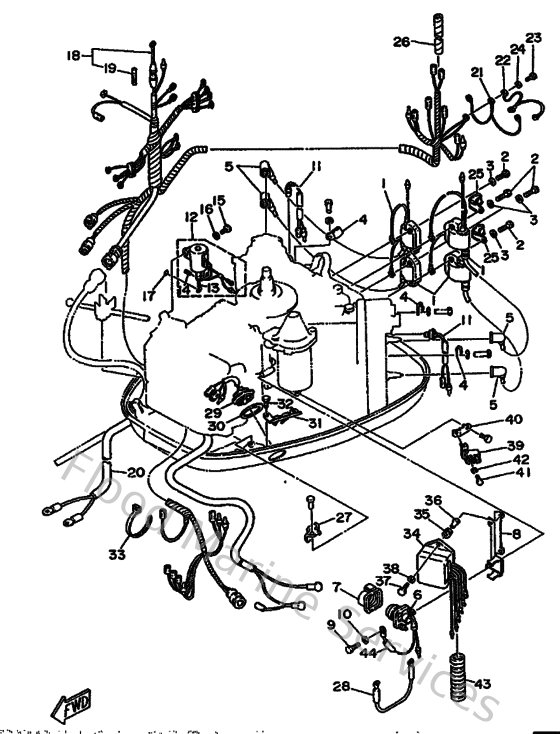

Diagram: Electric Parts
Parts List
Reference
Description
Price
1
6E5855701000
Ignition coil assembly
Loading…
↗
2
973130603000
Bolt
Loading…
↗
3
929030660000
Washer, plain (646)
Loading…
↗
4
9046508M0700
Clamp (1e6)
Loading…
↗
5
663823700100
Plug cap assembly
Loading…
↗
6
6E5819411100
Starter relay assembly
Loading…
↗
7
689819521000
Holder, starter relay
Loading…
↗
8
6E5819481000
Bracket
Loading…
↗
9
973950601600
Bolt, hexagon deep recess
Loading…
↗
11
688825601000
Thermo switch assembly
Loading…
↗
12
6E5861100200
Solenoid
Loading…
↗
13
6E5861160100
Wire, pull
Loading…
↗
14
916093001000
Pin, spring (663)
Loading…
↗
15
973130601600
Bolt, hexagon deep recess
Loading…
↗
16
929900660000
Washer, plain (646)
Loading…
↗
17
932100326100
O-ring (663)
Loading…
↗
19
663821510000
Fuse
Loading…
↗
20
6E5821051100
Battery cable
Loading…
↗
21
6E5825190000
Wire, Earth Lead
Loading…
↗
22
6E5825311000
Wire, lead
Loading…
↗
23
973950601200
Bolt(gh1)
Loading…
↗
25
9046508M1200
Clamp (6e5)
Loading…
↗
26
9044610M0100
Tube (6e5)
Loading…
↗
27
9046512M2500
Clamp (6e5)
Loading…
↗
28
6E5821170100
Wire, lead
Loading…
↗
29
6E5825630000
Trim & tilt switch assembly
Loading…
↗
30
6E5825870000
Gasket
Loading…
↗
31
6E5836140100
Bracket
Loading…
↗
33
9046513M3000
Clamp
Loading…
↗
34
6G5819500000
Relay assembly
Loading…
↗
35
6A0823170000
Damper, ignition coil
Loading…
↗
36
624425420000
Collar
Loading…
↗
37
973130602500
Bolt
Loading…
↗
38
9020106M6200
Washer, plate (6e5)
Loading…
↗
40
6G5819290000
Bracket, Terminal
Loading…
↗
42
929900610000
Washer(6a1)
Loading…
↗
43
6G1835570000
Tube
Loading…
↗
1
6E5855420094
Bracket
Loading…
↗
2
9048009M1200
Grommet (6a0)
Loading…
↗
3
9038706M0300
Collar (676)
Loading…
↗
4
9011906M2800
Bolt, With Washer
Loading…
↗
7
6E5855401200
Cdi unit assembly
Loading…
↗
8
985030400800
Screw, pan head (713)
Loading…
↗
9
929900420000
Ybs66-4 washer, plain
Loading…
↗
10
6E5855471000
Damper
Loading…
↗
11
6E5855371000
Cover
Loading…
↗
12
973030501000
Bolt, hexagon
Loading…
↗
13
929900560000
Washer, plain (646)
Loading…
↗
16
688819606100
Rectifier/reg Assembly (688-81960-60)
Loading…
↗
17
973130602000
Bolt(7u8)
Loading…
↗
19
688819610000
Cover
Loading…
↗
20
978030502500
Screw, panhead (a93)
Loading…
↗
21
929030560000
Washer, plain (646)
Loading…
↗
