25DMH (1986)
Electric Parts

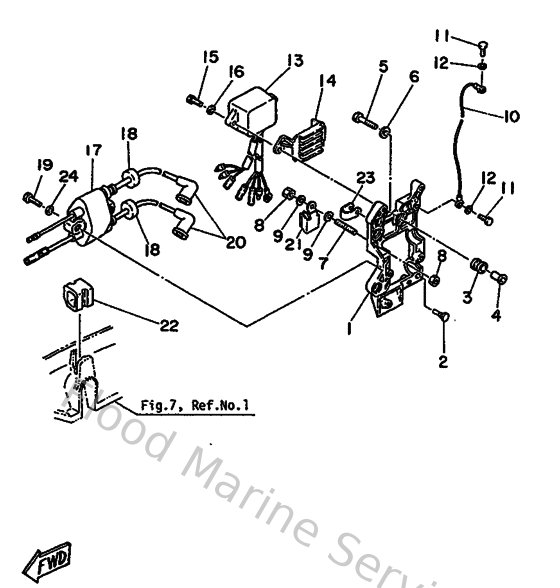

Diagram: Electric Parts
Parts List
Reference
Description
Price
1
695855420094
Bracket
Loading…
↗
2
689855470000
Damper
Loading…
↗
3
663823170000
Damper, ignition coil
Loading…
↗
4
903870611900
Collar
Loading…
↗
5
973130602500
Bolt
Loading…
↗
6
902010605000
Washer, plate(6e3)
Loading…
↗
7
9011606M0700
Bolt, stud (688)
Loading…
↗
8
953030660000
Nut(661)
Loading…
↗
9
929030660000
Washer, plain (646)
Loading…
↗
10
689825190000
Wire Earth Lead
Loading…
↗
11
973130601200
Bolt(gh1)
Loading…
↗
12
929950610000
Washer(6a1)
Loading…
↗
13
695855401200
C.d.i. unit assembly
Loading…
↗
14
689855480100
Holder
Loading…
↗
17
6E7855701900
Ignition coil assembly
Loading…
↗
18
904802516100
Grommet(656)
Loading…
↗
20
6G1823702000
Plug cap assembly
Loading…
↗
21
9046508M1300
Clamp (695)
Loading…
↗
22
9048017M0800
Grommet (689)
Loading…
↗
1
6G1819400000
Starter relay
Loading…
↗
2
6G1819411000
Starter relay
Loading…
↗
3
6G1819520000
Holder, relay
Loading…
↗
4
695819450000
Plate, Switch Fitting
Loading…
↗
6
664819706200
Rectifier assembly
Loading…
↗
7
978030502500
Screw, panhead (a93)
Loading…
↗
8
929030560000
Washer, plain (646)
Loading…
↗
9
695819750000
Plate, rectifier fitting
Loading…
↗
10
9010106M0100
Bolt (6f5)
Loading…
↗
11
682821501000
Fuse holder assembly
Loading…
↗
12
663821510000
Fuse
Loading…
↗
13
689825400100
Neutral switch ass'y
Loading…
↗
14
656157744100
Stay 4 (For Neutral Switch)
Loading…
↗
16
682861170000
Hook, wire pull
Loading…
↗
17
916903001000
Pin, spring (663)
Loading…
↗
19
689861120300
Stay, Solenoid
Loading…
↗
20
904801015500
Grommet(664)
Loading…
↗
21
985030400500
Screw, pan head (7h3)
Loading…
↗
22
978030501200
Screw,pan head (646)
Loading…
↗
23
929900560000
Washer, plain (646)
Loading…
↗
24
932100326100
O-ring (663)
Loading…
↗
26
929900660000
Washer, plain (646)
Loading…
↗
27
695825801300
Wire Harness assembly 2
Loading…
↗
28
695821051200
Battery cable
Loading…
↗
29
689825901100
Wire Harness Assembly
Loading…
↗
30
689427245000
Grommet
Loading…
↗
31
904801716500
Grommet(663)
Loading…
↗
32
689825941000
Clamp
Loading…
↗
33
682425250000
Plate, friction 1
Loading…
↗
34
9016106M0000
Screw, tapping(6e7)
Loading…
↗
