25JETO (1987)
Electric Parts

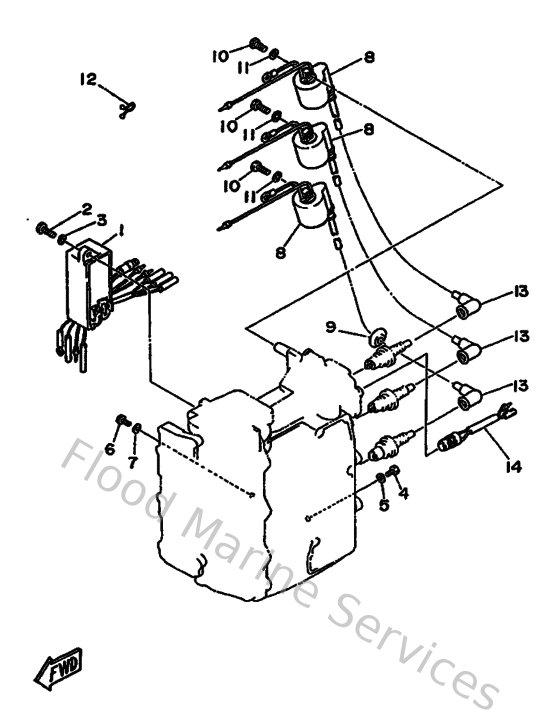

Diagram: Electric Parts
Parts List
Reference
Description
Price
1
6J885540H000
C.d.i. Unit Assembly
Loading…
↗
2
973130602500
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
970130601200
Bolt(gh1)
Loading…
↗
6
973130601200
Bolt(gh1)
Loading…
↗
8
6J8855702000
Ignition coil assembly
Loading…
↗
9
904802516100
Grommet(656)
Loading…
↗
10
973130602000
Bolt(7u8)
Loading…
↗
11
929950610000
Washer(6a1)
Loading…
↗
12
9046405M1600
Clamp(6j8)
Loading…
↗
13
6G1823702000
Plug cap assembly
Loading…
↗
14
689825600000
Thermo switch assembly
Loading…
↗
