Yamaha Outboard Parts - Electric Parts - 40HM (1986) | Flood Marine

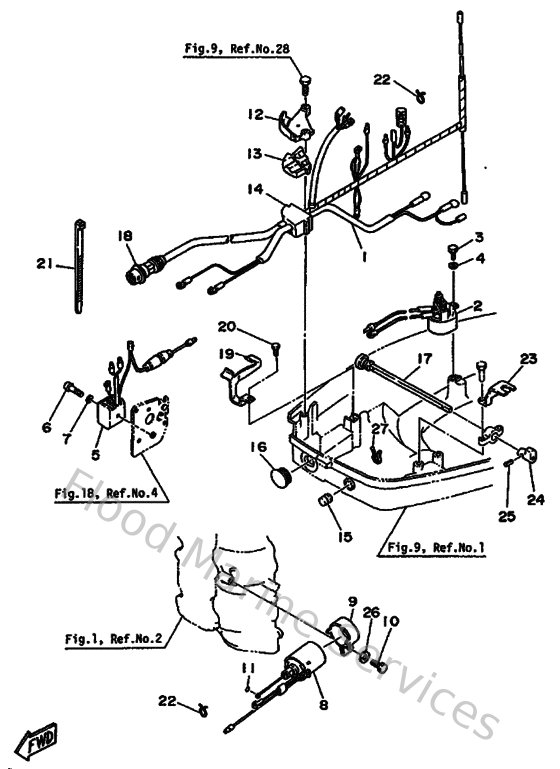

Diagram: Electric Parts

Diagram

Parts List

Reference
Description
Price


1
6H4821050000
Battery cable
Loading…

↗
2
688819501000
Relay assembly
Loading…

↗
3
970950601600
Bolt, hexagon deep recess
Loading…

↗
4
929030660000
Washer, plain (646)
Loading…

↗
5
6G1819706000
Rectifier assembly
Loading…

↗
6
985800552500
Screw, panhead (a93)
Loading…

↗
7
929030560000
Washer, plain (646)
Loading…

↗
9
6H4861120000
Stay, Solenoid
Loading…

↗
10
973130601600
Bolt, hexagon deep recess
Loading…

↗
11
932100326100
O-ring (663)
Loading…

↗
12
6H4485311094
Bracket, remote control 1
Loading…

↗
13
6H4485321194
Bracket, remote control 2
Loading…

↗
14
6H4427242000
Grommet
Loading…

↗
15
6H4427250000
Grommet 2
Loading…

↗
16
676427260000
Grommet 3
Loading…

↗
17
6H4441111000
Handle, Gear Shift
Loading…

↗
18
6H4825900100
Wire Harness assembly
Loading…

↗
19
6H4825880000
Plate
Loading…

↗
20
973130601200
Bolt(gh1)
Loading…

↗
21
437839361100
Band, switch cord
Loading…

↗
22
904651814700
Clamp
Loading…

↗
23
6H4825540000
Stay, Neutral Switch
Loading…

↗
24
6H4441730000
Lever Shift Control
Loading…

↗
25
916903002000
Pin, spring (6h4)
Loading…

↗
27
9046408M0700
Clamp
Loading…

↗
1
6H4855402000
C.d.i. Unit assembly
Loading…

↗
2
973130602500
Bolt
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
6H4825310000
Wire, Lead
Loading…

↗
10
6H4819160000
Cover, terminal
Loading…

↗
11
978030602500
Screw, pan head(6b0)
Loading…

↗
14
970800602000
Bolt(7u8)
Loading…

↗
16
6G1823702000
Plug cap assembly
Loading…

↗
17
689825600000
Thermo switch assembly
Loading…

↗
20
9015906M0700
Screw, With Washer
Loading…

↗
