Yamaha Outboard Parts - Electric Parts - 5CMH (1986) | Flood Marine

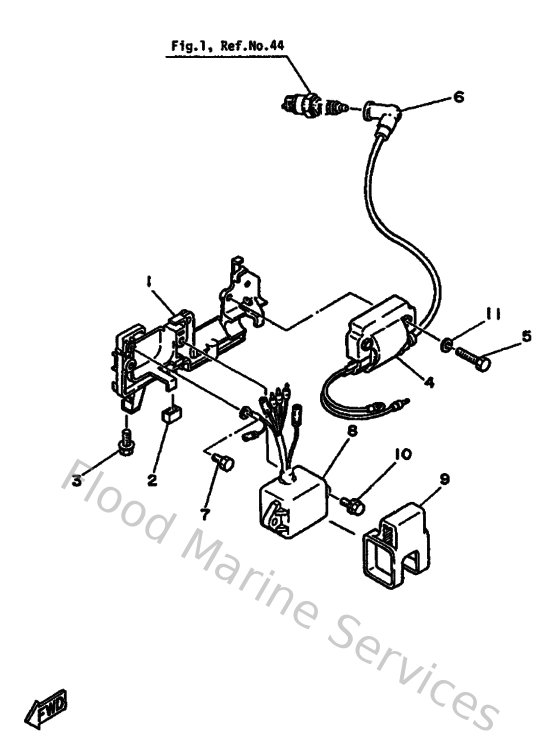

Diagram: Electric Parts

Diagram

Parts List

Reference
Description
Price


1
6E0823160094
Bracket, ignition coil
Loading…

↗
2
6E0823170000
Damper
Loading…

↗
3
985800601600
Screw pan head
Loading…

↗
4
6E0855702000
Ignition Coil assembly
Loading…

↗
5
973130603000
Bolt
Loading…

↗
6
6G1823702100
Plug cap assembly
Loading…

↗
7
973130601000
Bolt
Loading…

↗
9
6E0855480000
Holder, wire harness
Loading…

↗
10
9010506M1500
Bolt (6e0)
Loading…

↗
11
929900610000
Washer(6a1)
Loading…

↗
