Yamaha Outboard Parts - Electric Parts - 60FETO (1987) | Flood Marine

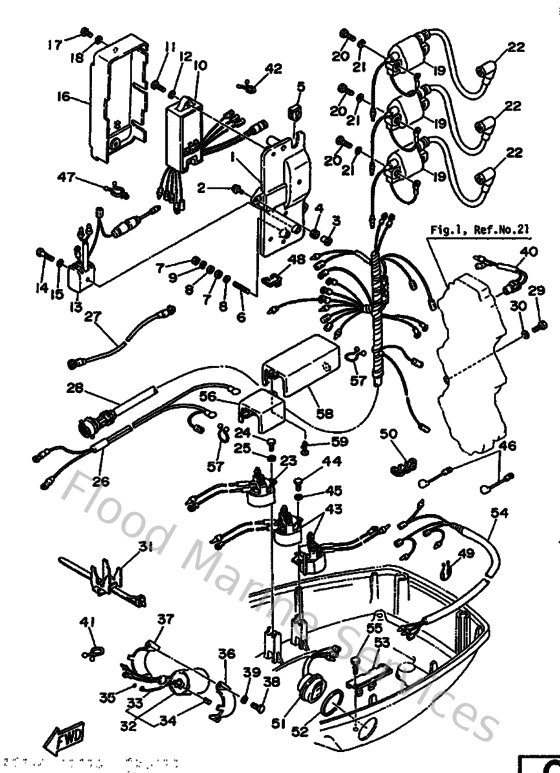

Diagram: Electric Parts

Diagram

Parts List

Reference
Description
Price


1
6H3855420094
Bracket
Loading…

↗
2
9010506M1400
Bolt (6e0)
Loading…

↗
3
9038706M4300
Coller (6e9)
Loading…

↗
4
9048013M2400
Grommet (6e9)
Loading…

↗
5
6H3819220000
Grommet
Loading…

↗
6
9011606M0700
Bolt, stud (688)
Loading…

↗
7
953900670000
Nut
Loading…

↗
8
929900620000
Ybs66-6 washer, plain
Loading…

↗
9
929950610000
Washer(6a1)
Loading…

↗
10
6H3855401100
C.d.i. unit assembly
Loading…

↗
11
978030602500
Screw, pan head(6b0)
Loading…

↗
12
929900660000
Washer, plain (646)
Loading…

↗
13
6G1819706000
Rectifier assembly
Loading…

↗
14
985800552500
Screw, panhead (a93)
Loading…

↗
15
929030560000
Washer, plain (646)
Loading…

↗
16
6H3819160000
Cover, terminal
Loading…

↗
17
978850601200
Screw, pan head(62j)
Loading…

↗
18
929030660000
Washer, plain (646)
Loading…

↗
19
6H3855701000
Ignition coil assembly
Loading…

↗
20
9010106M2700
Bolt
Loading…

↗
22
6G1823702000
Plug cap assembly
Loading…

↗
23
688819501000
Relay assembly
Loading…

↗
24
973130601600
Bolt, hexagon deep recess
Loading…

↗
26
66T82105J100
Battery cable
Loading…

↗
27
6H3821170000
Wire, lead
Loading…

↗
29
973130601200
Bolt(gh1)
Loading…

↗
31
688825940000
Clamp
Loading…

↗
32
6H3861100200
Solenoid
Loading…

↗
33
6H3861160000
Wire, Pull
Loading…

↗
34
916903001000
Pin, spring (663)
Loading…

↗
35
932100326100
O-ring (663)
Loading…

↗
36
6H3861120000
Stay, Solenoid
Loading…

↗
37
6H3861150000
Holder Solenoid
Loading…

↗
40
688825601000
Thermo switch assembly
Loading…

↗
41
904651814700
Clamp
Loading…

↗
42
9046408M0700
Clamp
Loading…

↗
44
973130602000
Bolt(7u8)
Loading…

↗
46
688819490000
Wire, Lead
Loading…

↗
47
9046412M0900
Clamp(6h4)
Loading…

↗
48
9046407M1000
Clamp (6h3)
Loading…

↗
49
9046404M1200
Clamp (6h3)
Loading…

↗
51
6H1825630000
Trim & tilt switch assembly
Loading…

↗
52
6E5825870000
Gasket
Loading…

↗
53
6E5836140100
Bracket
Loading…

↗
54
6H3825530000
Extension, Wire
Loading…

↗
55
970950601600
Bolt, hexagon deep recess
Loading…

↗
56
6H3821640000
Case 2
Loading…

↗
57
9046415M1100
Clamp (3y2)
Loading…

↗
