6CEM (1986)
Electric Parts

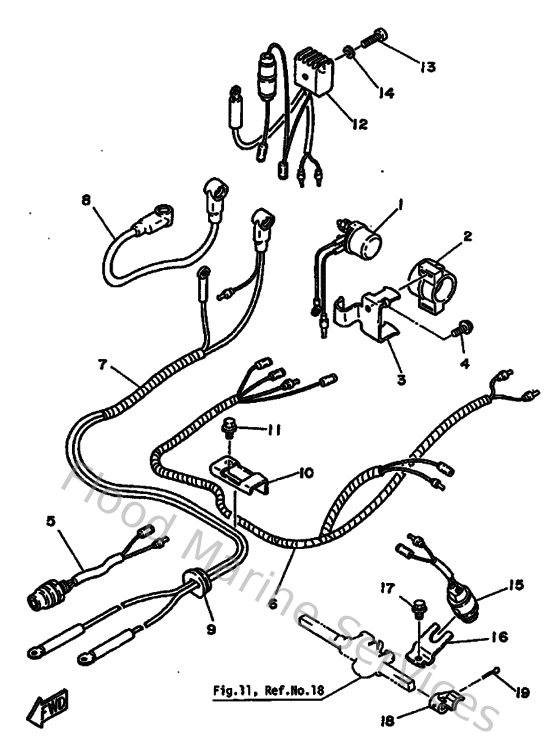

Diagram: Electric Parts
Parts List
Reference
Description
Price
1
6G1819411000
Starter relay
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
3
6G1819450000
Plate, Switch Fitting
Loading…
↗
4
9010506M1400
Bolt (6e0)
Loading…
↗
5
689818700000
Starting switch assembly
Loading…
↗
6
6G1825900000
Wire Harness assembly
Loading…
↗
7
6G1821050000
Battery cable
Loading…
↗
8
6G1821170000
Wire, lead
Loading…
↗
9
682427240000
Grommet
Loading…
↗
10
6G1823620000
Clamp Cord
Loading…
↗
11
9010506M2300
Bolt (6g1)
Loading…
↗
12
6G1819706000
Rectifier assembly
Loading…
↗
13
978030502500
Screw, panhead (a93)
Loading…
↗
14
929030560000
Washer, plain (646)
Loading…
↗
15
688825401200
Neutral switch assembly
Loading…
↗
16
6G1825540000
Stay Neutral Switch
Loading…
↗
18
6G1441250000
Lever Shift Rod 2
Loading…
↗
19
914902502000
Pin, cotter
Loading…
↗
1
6G1855700000
Ignition coil assembly
Loading…
↗
2
9010506M2400
Bolt (6g1)
Loading…
↗
3
9046508M1700
Clamp (6G1)
Loading…
↗
4
6G1416110000
Retainer, magneto base 1
Loading…
↗
5
6G1416120000
Retainer, magneto base
Loading…
↗
6
695416130000
Plate, base friction
Loading…
↗
7
978030501000
Screw, pan head(62x)
Loading…
↗
8
929900560000
Washer, plain (646)
Loading…
↗
9
6G1416150000
Stopper, magneto base
Loading…
↗
11
6G1823702000
Plug cap assembly
Loading…
↗
12
696855401200
C.d.i. unit assembly
Loading…
↗
13
9010506M1500
Bolt (6e0)
Loading…
↗
15
6G1835570000
Tube
Loading…
↗
16
6G1441940000
Cap
Loading…
↗
