9.9DMH (1987)
Electric Parts

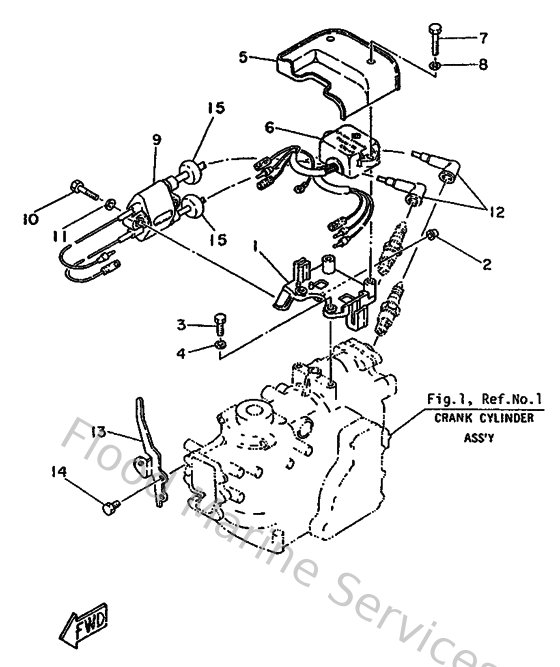

Diagram: Electric Parts
Parts List
Reference
Description
Price
1
6E7855420094
Bracket
Loading…
↗
2
6E7823170000
Damper
Loading…
↗
3
973130601600
Bolt, hexagon deep recess
Loading…
↗
4
929030660000
Washer, plain (646)
Loading…
↗
5
6E7819160000
Cover, Terminal
Loading…
↗
6
695855401200
C.d.i. unit assembly
Loading…
↗
7
973130603000
Bolt
Loading…
↗
8
929030620000
Ybs66-6 washer, plain
Loading…
↗
9
680855700900
Ignition coil assembly
Loading…
↗
12
6E3823702100
Plug cap assembly
Loading…
↗
13
682813320200
Plate, Timing
Loading…
↗
14
973130601400
Bolt(gj3)
Loading…
↗
15
904802516100
Grommet(656)
Loading…
↗
1
6G1819411000
Starter relay
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
3
6E7819450000
Plate, Switch Fitting
Loading…
↗
4
970950601400
Bolt(gj3)
Loading…
↗
5
6E7157714094
Stay
Loading…
↗
6
664819706000
Rectifier assembly
Loading…
↗
7
985800552500
Screw, panhead (a93)
Loading…
↗
8
929030560000
Washer, plain (646)
Loading…
↗
9
682861100000
Solenoid
Loading…
↗
12
904801015500
Grommet(664)
Loading…
↗
13
682861160000
Wire, pull
Loading…
↗
14
682861170000
Hook, wire pull
Loading…
↗
16
985030400500
Screw, pan head (7h3)
Loading…
↗
17
929900410000
Ybs67-4 washer, spring
Loading…
↗
18
978030501200
Screw,pan head (646)
Loading…
↗
20
6E7821051000
Battery cable
Loading…
↗
23
689825941000
Clamp
Loading…
↗
24
682425250000
Plate, friction 1
Loading…
↗
25
9016106M0000
Screw, tapping(6e7)
Loading…
↗
26
9046408M0300
Clamp
Loading…
↗
27
970950601600
Bolt, hexagon deep recess
Loading…
↗
29
682825940100
Clamp
Loading…
↗
30
6E7821170000
Wire, lead
Loading…
↗
31
904801716500
Grommet(663)
Loading…
↗
32
538825991000
Cover, connector
Loading…
↗
33
663839360100
Band, Switch Cord
Loading…
↗
