F8BMH (1990)
Electric Parts

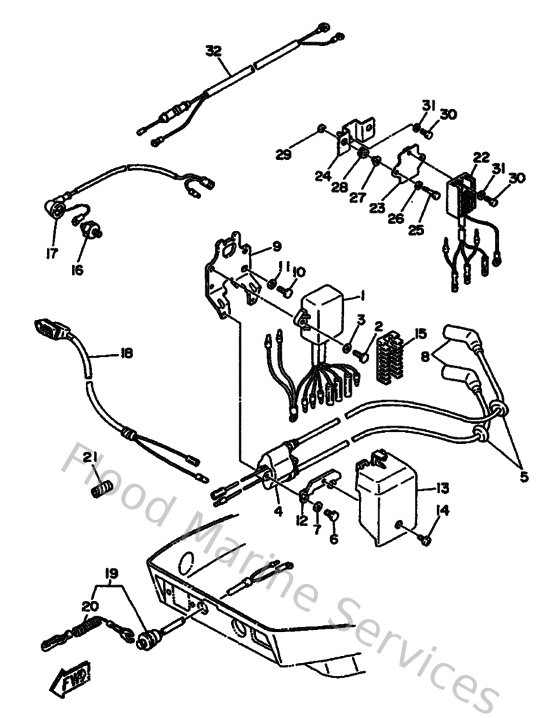

Diagram: Electric Parts
Parts List
Reference
Description
Price
1
6G9855402000
C.d.i. unit assembly
Loading…
↗
2
973130602500
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
6G8855702100
Ignition coil assembly
Loading…
↗
5
904802516100
Grommet(656)
Loading…
↗
6
973130602000
Bolt(7u8)
Loading…
↗
8
6G8823702000
Plug cap assembly
Loading…
↗
9
6G8855420000
Bracket
Loading…
↗
12
6G8855250000
Plate
Loading…
↗
13
6G8819160000
Cover, Terminal
Loading…
↗
14
6G8825220000
Clamp
Loading…
↗
15
6G8825040000
Oil pressure switch
Loading…
↗
17
6G8821270000
Wire Lead 2
Loading…
↗
18
6G8835820100
Pilot Light assembly
Loading…
↗
19
6G9825750000
Engine stop switch assembly
Loading…
↗
20
682825560000
Lanyard, stop switch
Loading…
↗
21
9044610M0100
Tube (6e5)
Loading…
↗
22
6J8819600000
Rectifier & regulator assembly
Loading…
↗
24
6G8819480100
Bracket
Loading…
↗
25
9010106M2700
Bolt
Loading…
↗
28
9048013M2400
Grommet (6e9)
Loading…
↗
29
953800670000
Nut
Loading…
↗
30
973130601600
Bolt, hexagon deep recess
Loading…
↗
32
6J8821051000
Battery cable
Loading…
↗
