Yamaha Outboard Parts - Electric Parts - FT9.9AMH (1995) | Flood Marine

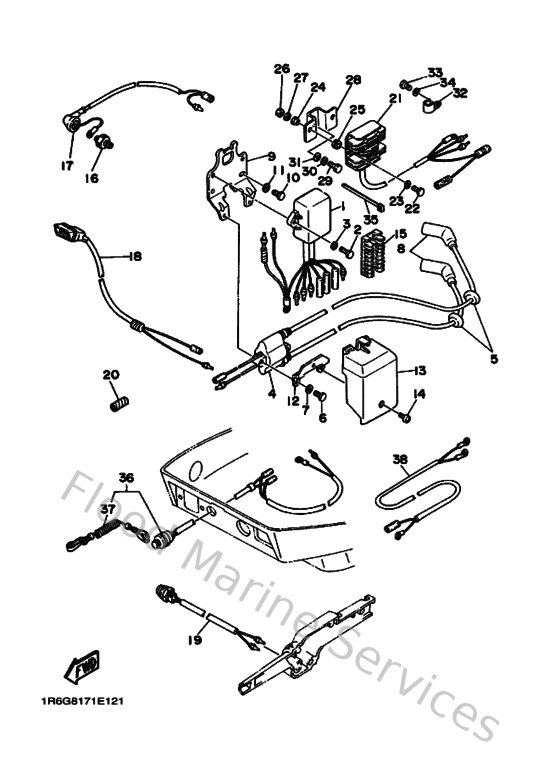

Diagram: Electric Parts

Diagram

Parts List

Reference
Description
Price


1
6G8855402200
C.d.i. unit assembly
Loading…

↗
2
973950602000
Bolt(7u8)
Loading…

↗
3
929900660000
Washer, plain (646)
Loading…

↗
4
6G8855702100
Ignition coil assembly
Loading…

↗
5
904802516100
Grommet(656)
Loading…

↗
6
973950602500
Bolt
Loading…

↗
8
6G8823702000
Plug cap assembly
Loading…

↗
9
6G8855420000
Bracket
Loading…

↗
10
970800602000
Bolt(7u8)
Loading…

↗
12
6G8855250000
Plate
Loading…

↗
13
6G8819160000
Cover, Terminal
Loading…

↗
14
989800600800
Screw, bind(2tv)
Loading…

↗
15
6G8825220000
Clamp
Loading…

↗
16
6G8825040000
Oil pressure switch
Loading…

↗
17
6G8821270000
Wire Lead 2
Loading…

↗
18
6G8835820100
Pilot Light assembly
Loading…

↗
19
6G8825502000
Engine Stop Switch assembly
Loading…

↗
20
9044610M0100
Tube (6e5)
Loading…

↗
21
6G8819600000
Rectifire Regulator assembly
Loading…

↗
24
9038706M7000
Collar (6h5)
Loading…

↗
25
9048013M2400
Grommet (6e9)
Loading…

↗
26
9538R0670000
Nut
Loading…

↗
28
6G8819480200
Bracket
Loading…

↗
30
929950610000
Washer(6a1)
Loading…

↗
32
904650802800
Clamp (1e6)
Loading…

↗
33
970130601200
Bolt(gh1)
Loading…

↗
35
80L263970000
Band
Loading…

↗
36
6G8825750000
Engine stop switch assembly
Loading…

↗
37
682825560000
Lanyard, stop switch
Loading…

↗
38
6G8819490000
Wire, lead
Loading…

↗
