200AETOL (1996)
Electric Parts 1

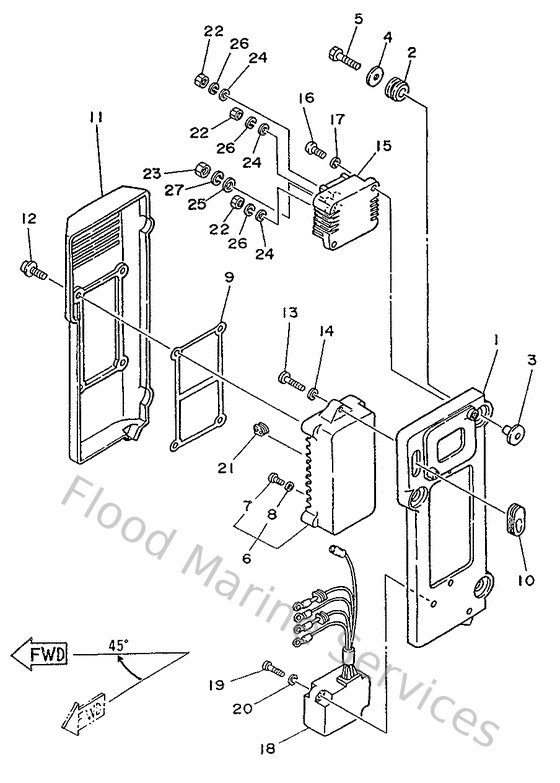

Diagram: Electric Parts 1
Parts List
Reference
Description
Price
2
9048009M1200
Grommet (6a0)
Loading…
↗
3
9038706M0300
Collar (676)
Loading…
↗
4
902010641600
Washer, plate(663)
Loading…
↗
5
9011906M2800
Bolt, With Washer
Loading…
↗
6
6G5855401200
Cdi Unit assembly
Loading…
↗
7
985030400800
Screw, pan head (713)
Loading…
↗
8
929900420000
Ybs66-4 washer, plain
Loading…
↗
9
6G5855470000
Damper
Loading…
↗
11
6G5855370000
Cover
Loading…
↗
12
9015906M0300
Screw (6g5)
Loading…
↗
13
978030603000
Screw, pan head(6e0)
Loading…
↗
14
929030660000
Washer, plain (646)
Loading…
↗
15
6G581960A000
Rectifier & regulator assembly
Loading…
↗
16
985800602000
Screw pan head
Loading…
↗
18
6G5855901200
Control Unit assembly
Loading…
↗
19
978850603000
Screw, pan head(6e0)
Loading…
↗
21
904800606600
Grommet
Loading…
↗
22
953800560000
Nut, hexagon (663)
Loading…
↗
23
953900660000
Nut(661)
Loading…
↗
24
929900520000
Ybs66-5 washer, plain
Loading…
↗
25
929900620000
Ybs66-6 washer, plain
Loading…
↗
26
929030510000
Ybs67-5 washer, spring
Loading…
↗
27
929030610000
Washer(6a1)
Loading…
↗
