115AETOL (1985)
Electric Parts 2

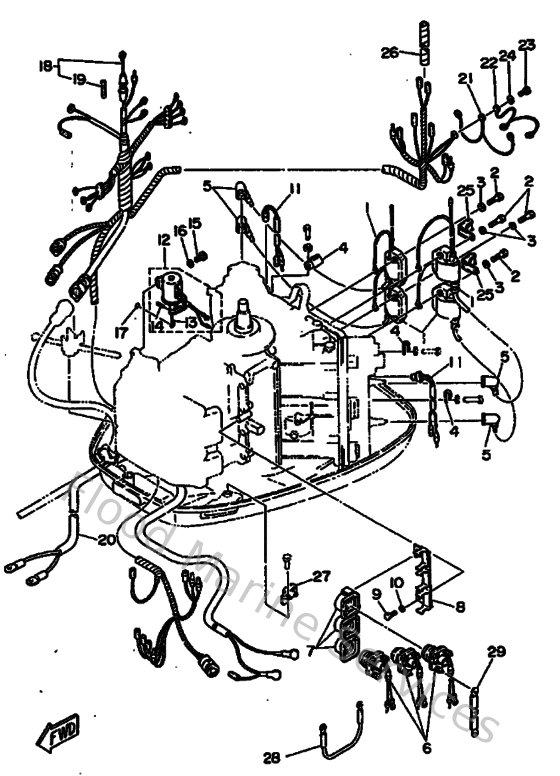

Diagram: Electric Parts 2
Parts List
Reference
Description
Price
1
6E5855701000
Ignition coil assembly
Loading…
↗
2
973130603000
Bolt
Loading…
↗
3
929030660000
Washer, plain (646)
Loading…
↗
4
904650802800
Clamp (1e6)
Loading…
↗
5
663823700100
Plug cap assembly
Loading…
↗
6
6E5819411100
Starter relay assembly
Loading…
↗
7
689819521000
Holder, starter relay
Loading…
↗
8
6E5819481000
Bracket
Loading…
↗
9
973950601600
Bolt, hexagon deep recess
Loading…
↗
11
688825601000
Thermo switch assembly
Loading…
↗
12
6E5861100100
Solenoid
Loading…
↗
13
6E5861160100
Wire, pull
Loading…
↗
14
916903001000
Pin, spring (663)
Loading…
↗
15
973130601600
Bolt, hexagon deep recess
Loading…
↗
17
932100326100
O-ring (663)
Loading…
↗
19
682821510100
Fuse
Loading…
↗
20
6E5821051100
Battery cable
Loading…
↗
21
6E5825190000
Wire, Earth Lead
Loading…
↗
22
6E5825311000
Wire, lead
Loading…
↗
23
973950601200
Bolt(gh1)
Loading…
↗
24
929900660000
Washer, plain (646)
Loading…
↗
25
9046508M0800
Clamp (6e5)
Loading…
↗
26
9044610M0100
Tube (6e5)
Loading…
↗
27
9046512M2500
Clamp (6e5)
Loading…
↗
28
6E5821170000
Wire, lead
Loading…
↗
29
6G5871490100
Connector
Loading…
↗
