Yamaha Outboard Parts - Electric Parts 2 - 115AETOL (1996) | Flood Marine

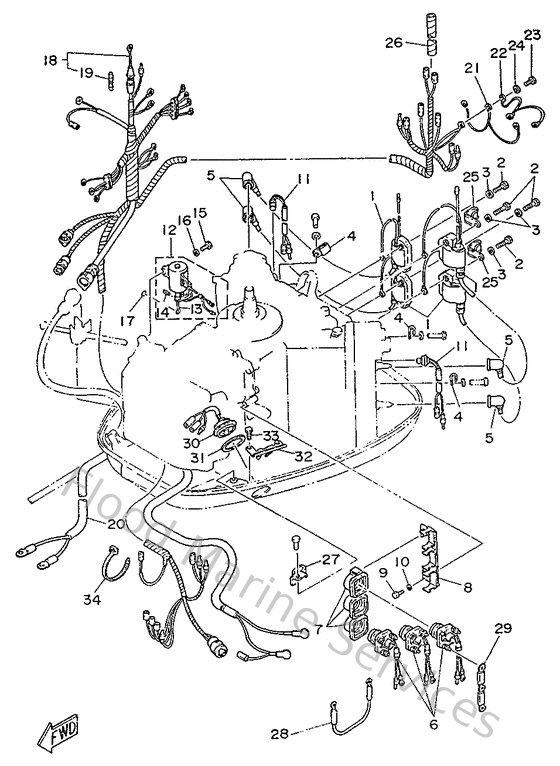

Diagram: Electric Parts 2

Diagram

Parts List

Reference
Description
Price


1
6E5855701000
Ignition coil assembly
Loading…

↗
2
973130603000
Bolt
Loading…

↗
3
929030660000
Washer, plain (646)
Loading…

↗
4
904650802800
Clamp (1e6)
Loading…

↗
5
6G1823702000
Plug cap assembly
Loading…

↗
6
6E5819411100
Starter relay assembly
Loading…

↗
7
689819521000
Holder, starter relay
Loading…

↗
8
6E5819481000
Bracket
Loading…

↗
9
973950601600
Bolt, hexagon deep recess
Loading…

↗
11
688825601000
Thermo switch assembly
Loading…

↗
13
6E5861160100
Wire, pull
Loading…

↗
14
916093001000
Pin, spring (663)
Loading…

↗
15
973130601600
Bolt, hexagon deep recess
Loading…

↗
17
932100326100
O-ring (663)
Loading…

↗
19
663821510000
Fuse
Loading…

↗
20
6E5821051100
Battery cable
Loading…

↗
21
6E5825190000
Wire, Earth Lead
Loading…

↗
22
6E5825311000
Wire, lead
Loading…

↗
23
973950601200
Bolt(gh1)
Loading…

↗
24
929900660000
Washer, plain (646)
Loading…

↗
25
9046508M1200
Clamp (6e5)
Loading…

↗
26
9044610M0100
Tube (6e5)
Loading…

↗
27
9046512M2500
Clamp (6e5)
Loading…

↗
28
6E5821170000
Wire, lead
Loading…

↗
29
6G5871490100
Connector
Loading…

↗
30
6E5825630000
Trim & tilt switch assembly
Loading…

↗
31
6E5825870000
Gasket
Loading…

↗
32
6E5836140100
Bracket
Loading…

↗
34
9046513M1800
Clamp
Loading…

↗
