Yamaha Outboard Parts - Electric Parts 2 - 150AETOL (1987) | Flood Marine

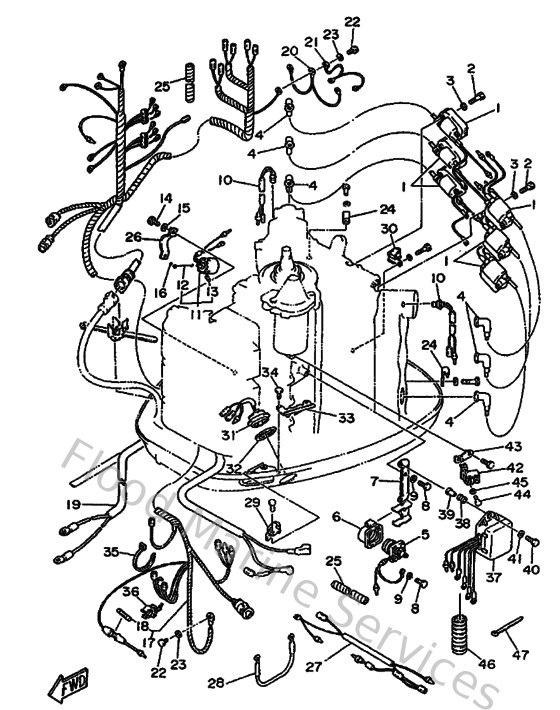

Diagram: Electric Parts 2

Diagram

Parts List

Reference
Description
Price


1
6E5855701000
Ignition coil assembly
Loading…

↗
2
973130603000
Bolt
Loading…

↗
3
929030660000
Washer, plain (646)
Loading…

↗
4
6E3823702000
Plug cap assembly
Loading…

↗
5
61A819410000
Starter relay assembly
Loading…

↗
6
689819521000
Holder, starter relay
Loading…

↗
8
973950601600
Bolt, hexagon deep recess
Loading…

↗
9
929900660000
Washer, plain (646)
Loading…

↗
10
688825601000
Thermo switch assembly
Loading…

↗
11
6G5861100100
Solenoid
Loading…

↗
12
6G5861190000
Wire, Pull
Loading…

↗
13
916903001000
Pin, spring (663)
Loading…

↗
14
973130601600
Bolt, hexagon deep recess
Loading…

↗
16
932100326100
O-ring (663)
Loading…

↗
17
6G5825901200
Wire Harness assembly
Loading…

↗
18
663821510000
Fuse
Loading…

↗
19
6R382105J200
Battery cable
Loading…

↗
20
6E5825190000
Wire, Earth Lead
Loading…

↗
21
6E5825310000
Wire, lead
Loading…

↗
22
973950601200
Bolt(gh1)
Loading…

↗
24
904650802800
Clamp (1e6)
Loading…

↗
25
9044610M0100
Tube (6e5)
Loading…

↗
28
6E5821170000
Wire, lead
Loading…

↗
29
9046512M2500
Clamp (6e5)
Loading…

↗
30
9046508M0800
Clamp (6e5)
Loading…

↗
31
6E5825630000
Trim & tilt switch assembly
Loading…

↗
33
6E5836140100
Bracket
Loading…

↗
35
9046513M1800
Clamp
Loading…

↗
36
6G5821520000
Holder, fuse
Loading…

↗
37
6G5819500100
Relay assembly
Loading…

↗
38
6A0823170000
Damper, ignition coil
Loading…

↗
39
624425420000
Collar
Loading…

↗
40
973130602500
Bolt
Loading…

↗
41
9020106M6200
Washer, plate (6e5)
Loading…

↗
42
6H5819200000
Terminal assembly
Loading…

↗
43
6G5819290000
Bracket, Terminal
Loading…

↗
46
6G5835570000
Tube
Loading…

↗
47
9046511M1000
Clamp
Loading…

↗
