200AETOL (1985)
Electric Parts 2

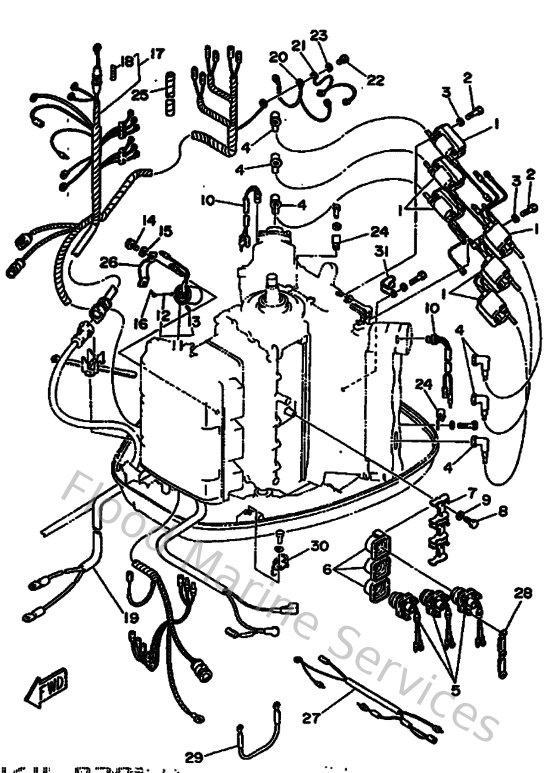

Diagram: Electric Parts 2
Parts List
Reference
Description
Price
1
6E5855701000
Ignition coil assembly
Loading…
↗
2
973130603000
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
663823700100
Plug cap assembly
Loading…
↗
5
6E5819411100
Starter relay assembly
Loading…
↗
6
689819521000
Holder, starter relay
Loading…
↗
8
970950601600
Bolt, hexagon deep recess
Loading…
↗
9
929030660000
Washer, plain (646)
Loading…
↗
10
688825601000
Thermo switch assembly
Loading…
↗
11
6G5861100100
Solenoid
Loading…
↗
12
6G5861190000
Wire, Pull
Loading…
↗
13
916903001000
Pin, spring (663)
Loading…
↗
14
973130601600
Bolt, hexagon deep recess
Loading…
↗
16
932100326100
O-ring (663)
Loading…
↗
18
663821510000
Fuse
Loading…
↗
19
6R382105J200
Battery cable
Loading…
↗
20
6E5825190000
Wire, Earth Lead
Loading…
↗
21
6E5825310000
Wire, lead
Loading…
↗
22
970800601200
Bolt(gh1)
Loading…
↗
24
9046508M0700
Clamp (1e6)
Loading…
↗
25
9044610M0100
Tube (6e5)
Loading…
↗
28
6G5871490100
Connector
Loading…
↗
29
6E5821170000
Wire, lead
Loading…
↗
30
9046512M2500
Clamp (6e5)
Loading…
↗
31
9046508M0800
Clamp (6e5)
Loading…
↗
