Yamaha Outboard Parts - Electric Parts 2 - 225AETOL (1987) | Flood Marine

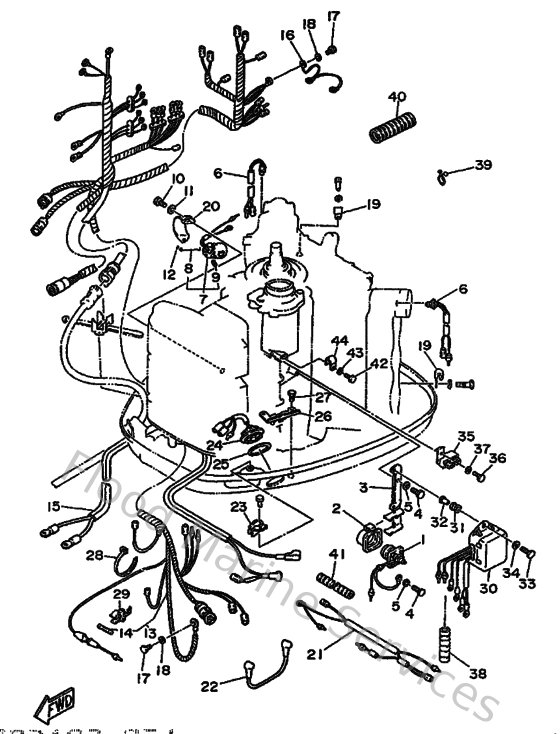

Diagram: Electric Parts 2

Diagram

Parts List

Reference
Description
Price


1
6E5819411100
Starter relay assembly
Loading…

↗
2
689819521000
Holder, starter relay
Loading…

↗
4
973950601600
Bolt, hexagon deep recess
Loading…

↗
5
929900660000
Washer, plain (646)
Loading…

↗
6
688825601000
Thermo switch assembly
Loading…

↗
8
6G5861190000
Wire, Pull
Loading…

↗
9
916903001000
Pin, spring (663)
Loading…

↗
10
973130601600
Bolt, hexagon deep recess
Loading…

↗
11
929030660000
Washer, plain (646)
Loading…

↗
12
932100326100
O-ring (663)
Loading…

↗
14
663821510000
Fuse
Loading…

↗
16
6E5825310000
Wire, lead
Loading…

↗
17
973950601200
Bolt(gh1)
Loading…

↗
19
9046508M0700
Clamp (1e6)
Loading…

↗
22
6K7821170000
Wire, lead
Loading…

↗
23
9046512M2500
Clamp (6e5)
Loading…

↗
24
6H1825630100
Trim & tilt switch assembly
Loading…

↗
25
6E5825870000
Gasket
Loading…

↗
26
6E5836140100
Bracket
Loading…

↗
28
9046513M3000
Clamp
Loading…

↗
29
6G5821520000
Holder, fuse
Loading…

↗
31
6A0823170000
Damper, ignition coil
Loading…

↗
32
624425420000
Collar
Loading…

↗
33
973130602500
Bolt
Loading…

↗
34
9020106M6200
Washer, plate (6e5)
Loading…

↗
35
6H5819200000
Terminal assembly
Loading…

↗
39
9046423M2200
Clamp
Loading…

↗
40
6G1835570000
Tube
Loading…

↗
41
6K7835570000
Tube
Loading…

↗
