Yamaha Outboard Parts - Electric Parts 2 - 50DEMTO (1986) | Flood Marine

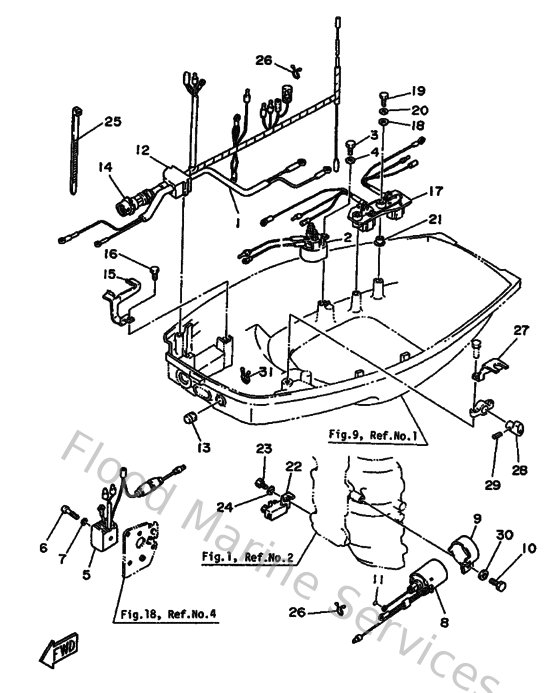

Diagram: Electric Parts 2

Diagram

Parts List

Reference
Description
Price


1
6H4821050000
Battery cable
Loading…

↗
2
688819501000
Relay assembly
Loading…

↗
3
973130601600
Bolt, hexagon deep recess
Loading…

↗
4
929900660000
Washer, plain (646)
Loading…

↗
5
6G1819706000
Rectifier assembly
Loading…

↗
6
978030502500
Screw, panhead (a93)
Loading…

↗
7
929900560000
Washer, plain (646)
Loading…

↗
9
6H4861120000
Stay, Solenoid
Loading…

↗
11
932100326100
O-ring (663)
Loading…

↗
12
6H4427242000
Grommet
Loading…

↗
13
6H4427250000
Grommet 2
Loading…

↗
14
6H4825900200
Wire Harness assembly
Loading…

↗
15
6H4825880000
Plate
Loading…

↗
16
970130601200
Bolt(gh1)
Loading…

↗
17
6H5819501000
Relay Assembly
Loading…

↗
18
929900620000
Ybs66-6 washer, plain
Loading…

↗
19
973130602500
Bolt
Loading…

↗
21
9038706M7000
Collar (6h5)
Loading…

↗
22
6H5819200000
Terminal assembly
Loading…

↗
23
973130601200
Bolt(gh1)
Loading…

↗
25
9046513M2400
Band, switch cord
Loading…

↗
26
904651814700
Clamp
Loading…

↗
27
6H4825540000
Stay, Neutral Switch
Loading…

↗
28
6H4441730100
Lever Shift Control
Loading…

↗
29
916903002000
Pin, spring (6h4)
Loading…

↗
30
929030660000
Washer, plain (646)
Loading…

↗
31
9046408M0700
Clamp
Loading…

↗
