FT9.9AMH (1995)
Electric Parts 2 (T9.9ER)

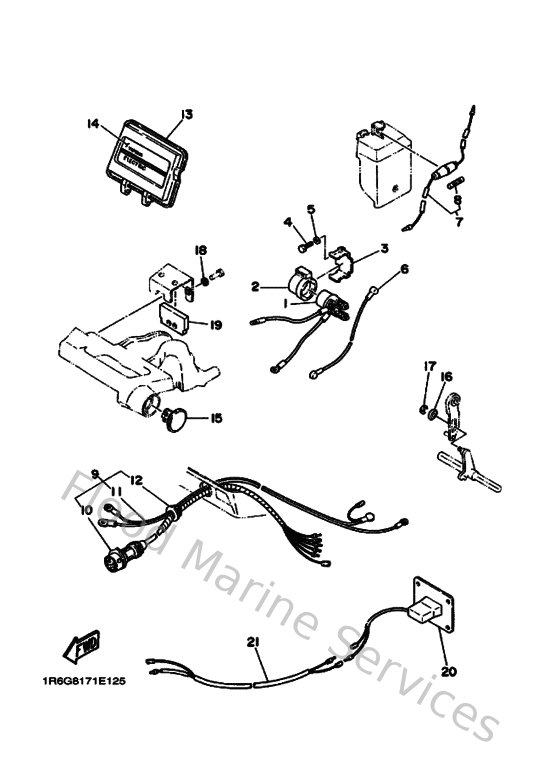

Diagram: Electric Parts 2 (T9.9ER)
Parts List
Reference
Description
Price
1
6J0819411000
Relay, starter
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
3
6G8819530000
Stay, relay
Loading…
↗
4
970130601200
Bolt(gh1)
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
6H4821170000
Wire, lead
Loading…
↗
7
6G8821500000
Fuse holder assembly
Loading…
↗
8
682821510000
Fuse
Loading…
↗
9
6G8825800000
Wire harness assembly
Loading…
↗
10
6G8825900000
Wire Harness assembly
Loading…
↗
11
6G8821050000
Battery Cable
Loading…
↗
12
6G8427245000
Grommet
Loading…
↗
14
6G8426772000
Graphic, Front
Loading…
↗
15
6G8425510000
Grommet
Loading…
↗
16
9038706M7300
Collar
Loading…
↗
17
990800460000
Circlip (eu0)
Loading…
↗
19
6G8483515100
Seal, rubber
Loading…
↗
20
6G8835300000
Pilot Light assembly
Loading…
↗
21
6G8825410000
Wire, Lead
