50DEMTO (1989)
Electrical

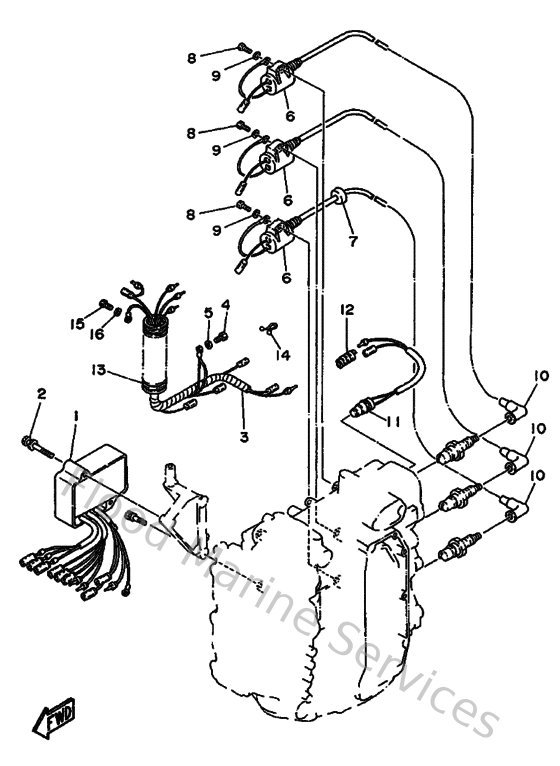

Diagram: Electrical
Parts List
Reference
Description
Price
1
6H5855400000
C.d.i. Unit assembly
Loading…
↗
2
9011906M5100
Bolt, with washer(6h4)
Loading…
↗
4
970130601200
Bolt(gh1)
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
6H5855700000
Ignition coil assembly
Loading…
↗
7
904802516100
Grommet(656)
Loading…
↗
8
973130602200
Bolt, hexagon
Loading…
↗
10
6G1823702100
Plug cap assembly
Loading…
↗
11
689825600000
Thermo switch assembly
Loading…
↗
12
9044610M0200
Tube (6e5)
Loading…
↗
13
6G1835570000
Tube
Loading…
↗
14
9046405M1600
Clamp(6j8)
Loading…
↗
15
973130601400
Bolt(gj3)
Loading…
↗
