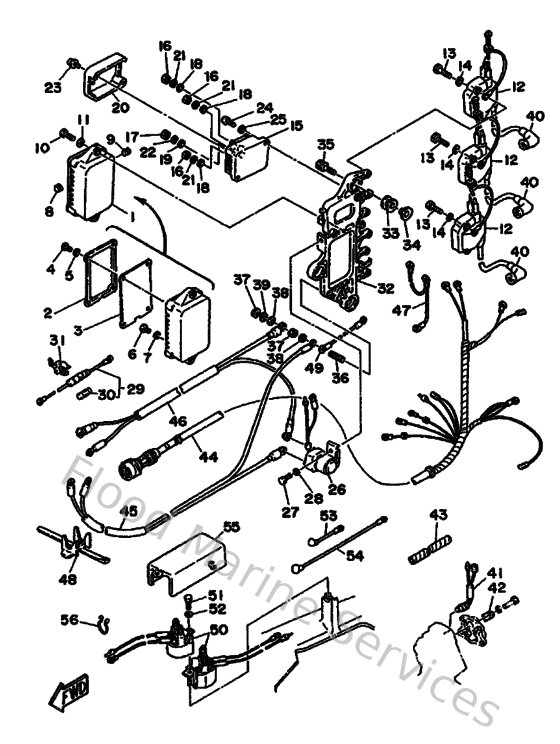

Diagram: Electrical

Diagram

Parts List

Reference
Description
Price


1
688855401600
C.d.i. Unit assembly
Loading…

↗
2
688855371200
Cover
Loading…

↗
3
6E5855471000
Damper
Loading…

↗
4
985800501000
Screw, pan head(62x)
Loading…

↗
5
929900560000
Washer, plain (646)
Loading…

↗
6
985800400800
Screw, pan head (713)
Loading…

↗
8
904800615700
Grommet
Loading…

↗
9
663819220000
Grommet
Loading…

↗
10
973130602500
Bolt
Loading…

↗
11
929900660000
Washer, plain (646)
Loading…

↗
12
688855701000
Ignition coil assembly
Loading…

↗
13
973130603000
Bolt
Loading…

↗
15
6G581960A000
Rectifier & regulator assembly
Loading…

↗
16
953800560000
Nut, hexagon (663)
Loading…

↗
17
953800660000
Nut(661)
Loading…

↗
18
929900520000
Ybs66-5 washer, plain
Loading…

↗
19
929900620000
Ybs66-6 washer, plain
Loading…

↗
20
688819610100
Cover
Loading…

↗
21
929900510000
Ybs67-5 washer, spring
Loading…

↗
22
929950610000
Washer(6a1)
Loading…

↗
24
973130602000
Bolt(7u8)
Loading…

↗
26
688819401100
Starter relay ass'y
Loading…

↗
27
973130601600
Bolt, hexagon deep recess
Loading…

↗
29
688821500100
Fuse holder assembly
Loading…

↗
30
682821510000
Fuse
Loading…

↗
31
6G5821520000
Holder, fuse
Loading…

↗
33
9048009M1200
Grommet (6a0)
Loading…

↗
34
9038706M0300
Collar (676)
Loading…

↗
35
9011906M2600
Bolt, with washer
Loading…

↗
36
9011606M2200
Bolt, stud (6h1)
Loading…

↗
37
9538R0670000
Nut
Loading…

↗
39
929900610000
Washer(6a1)
Loading…

↗
40
6G1823702000
Plug cap assembly
Loading…

↗
41
688825601000
Thermo switch assembly
Loading…

↗
42
688825880100
Plate
Loading…

↗
43
9044610M0100
Tube (6e5)
Loading…

↗
44
688825900300
Wire Harness Assembly
Loading…

↗
45
688821050200
Battery cable
Loading…

↗
46
688825310100
Wire, Lead
Loading…

↗
47
697825190000
Wire,earth lead
Loading…

↗
48
688825940000
Clamp
Loading…

↗
50
688819501000
Relay assembly
Loading…

↗
53
688819490000
Wire, Lead
Loading…

↗
54
688855150000
Lead Wire Assembly
Loading…

↗
56
904641603900
Clamp (3y2)
