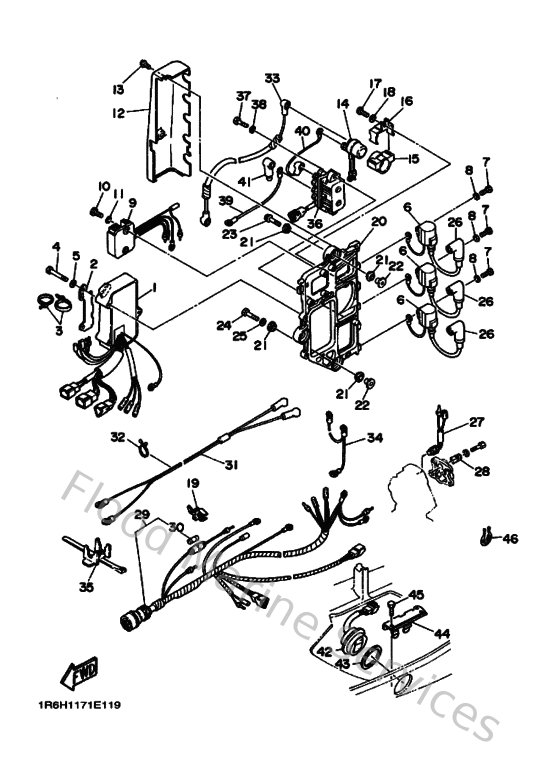

Diagram: Electrical

Diagram

Parts List

Reference
Description
Price


1
6H0855400200
C.d.i. unit assembly
Loading…

↗
2
6H1855421000
Bracket
Loading…

↗
3
9046513M1100
Clamp (6e5)
Loading…

↗
4
973950605000
Bolt(jf7)
Loading…

↗
5
929900620000
Ybs66-6 washer, plain
Loading…

↗
6
697855700000
Ignition coil assembly
Loading…

↗
7
973130602000
Bolt(7u8)
Loading…

↗
8
929900660000
Washer, plain (646)
Loading…

↗
9
6H0819600000
Rectifier & regulator assembly
Loading…

↗
10
973950602000
Bolt(7u8)
Loading…

↗
12
6H1819160000
Cover, terminal
Loading…

↗
13
9015906M1100
Screw, with washer(6l2)
Loading…

↗
14
6G1819411000
Starter relay
Loading…

↗
15
6G1819520000
Holder, relay
Loading…

↗
16
6E9819457000
Plate, switch fitting
Loading…

↗
17
973130601600
Bolt, hexagon deep recess
Loading…

↗
19
6G5821520000
Holder, fuse
Loading…

↗
20
6H1855420094
Bracket
Loading…

↗
21
9048009M2500
Grommet(688)
Loading…

↗
22
9038706M0300
Collar (676)
Loading…

↗
23
9011906M7500
Bolt, with washer
Loading…

↗
24
9010906M3900
Bolt(6h0)
Loading…

↗
25
9020106M3100
Washer (6a0)
Loading…

↗
26
6E3823702000
Plug cap assembly
Loading…

↗
27
688825601000
Thermo switch assembly
Loading…

↗
28
688825880100
Plate
Loading…

↗
29
6H0825901200
Wire harness assembly (10p)
Loading…

↗
30
682821510000
Fuse
Loading…

↗
31
6H082105J200
Battery cable
Loading…

↗
32
9046423M2200
Clamp
Loading…

↗
33
6H0821170000
Wire, lead
Loading…

↗
34
697825190000
Wire,earth lead
Loading…

↗
35
688825940000
Clamp
Loading…

↗
36
61A819500000
Relay assembly
Loading…

↗
37
9010106M2700
Bolt
Loading…

↗
39
6H0819491000
Wire, lead
Loading…

↗
40
6H5819490000
Wire, lead
Loading…

↗
41
682821190100
Cover, lead wire
Loading…

↗
42
6R3825630100
Trim & tilt switch assembly
Loading…

↗
43
6E5825870000
Gasket
Loading…

↗
44
6H1836140000
Braket
Loading…

↗
45
973950601600
Bolt, hexagon deep recess
Loading…

↗
46
9046418M1400
Clamp(6h1)
Loading…

↗
