115AETOL (1985)
Electrical 1

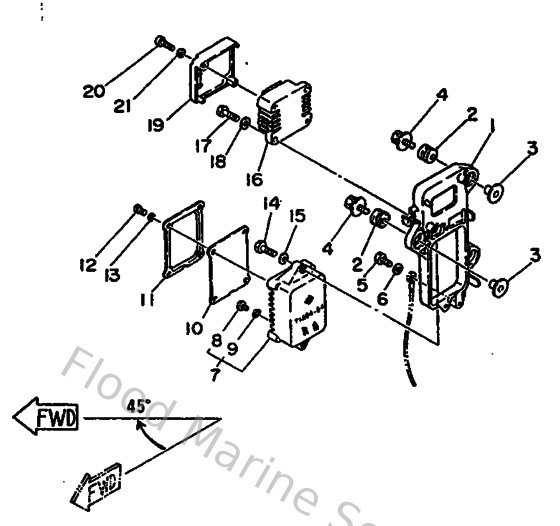

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6E5855420094
Bracket
Loading…
↗
2
9048009M1200
Grommet (6a0)
Loading…
↗
3
9038706M0300
Collar (676)
Loading…
↗
4
9011906M2800
Bolt, With Washer
Loading…
↗
5
973950601600
Bolt, hexagon deep recess
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
6E5855401200
Cdi unit assembly
Loading…
↗
8
985030400800
Screw, pan head (713)
Loading…
↗
9
929900420000
Ybs66-4 washer, plain
Loading…
↗
10
6E5855471000
Damper
Loading…
↗
11
6E5855371000
Cover
Loading…
↗
12
978030501000
Screw, pan head(62x)
Loading…
↗
13
929900560000
Washer, plain (646)
Loading…
↗
14
973130602500
Bolt
Loading…
↗
15
929030660000
Washer, plain (646)
Loading…
↗
16
688819606000
Rectifier & Regulator assembly
Loading…
↗
17
970800602000
Bolt(7u8)
Loading…
↗
19
688819610000
Cover
Loading…
↗
20
978030502500
Screw, panhead (a93)
Loading…
↗
21
929030560000
Washer, plain (646)
Loading…
↗
