15FMC (1999)
Electrical 1

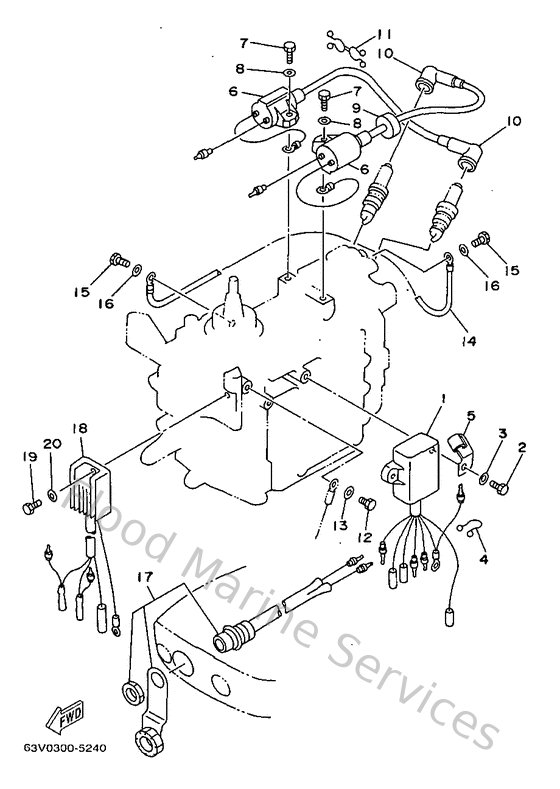

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
63V855400100
C.d.i. unit assembly
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
9046415M1100
Clamp (3y2)
Loading…
↗
5
9046508M6100
Clamp(63v)
Loading…
↗
6
63V855700100
Ignition coil assembly
Loading…
↗
7
970950601800
Bolt (fj0)
Loading…
↗
8
929950660000
Washer, plain (646)
Loading…
↗
9
904802516100
Grommet(656)
Loading…
↗
10
6E3823702100
Plug cap assembly
Loading…
↗
11
9046408M0200
Clamp
Loading…
↗
12
970950601200
Bolt(gh1)
Loading…
↗
14
662825190000
Wire, earth lead
Loading…
↗
15
970800601200
Bolt(gh1)
Loading…
↗
17
682843810000
2p concent 1
Loading…
↗
18
6J8819600000
Rectifier & regulator assembly
Loading…
↗
19
970950601600
Bolt, hexagon deep recess
Loading…
↗
