175AETOL (1985)
Electrical 1

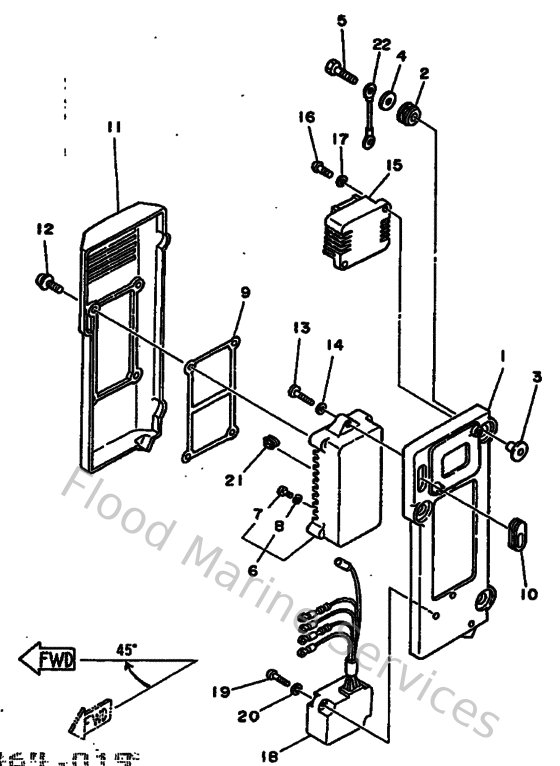

Diagram: Electrical 1
Parts List
Reference
Description
Price
2
9048009M1200
Grommet (6a0)
Loading…
↗
3
9038706M0300
Collar (676)
Loading…
↗
4
902010641600
Washer, plate(663)
Loading…
↗
5
9011906M2800
Bolt, With Washer
Loading…
↗
6
6G5855401100
C.d.i. Unit assembly
Loading…
↗
7
985800400800
Screw, pan head (713)
Loading…
↗
8
929900420000
Ybs66-4 washer, plain
Loading…
↗
9
6G5855470000
Damper
Loading…
↗
11
6G5855370000
Cover
Loading…
↗
12
9015906M0300
Screw (6g5)
Loading…
↗
13
978030603000
Screw, pan head(6e0)
Loading…
↗
14
929900660000
Washer, plain (646)
Loading…
↗
15
688819606000
Rectifier & Regulator assembly
Loading…
↗
16
978030602000
Screw pan head
Loading…
↗
17
929030660000
Washer, plain (646)
Loading…
↗
18
6G5855901200
Control Unit assembly
Loading…
↗
21
904800606600
Grommet
Loading…
↗
22
6G5833540000
Wire, Earth Lead 1
Loading…
↗
