20DMHO (2001)
Electrical 1

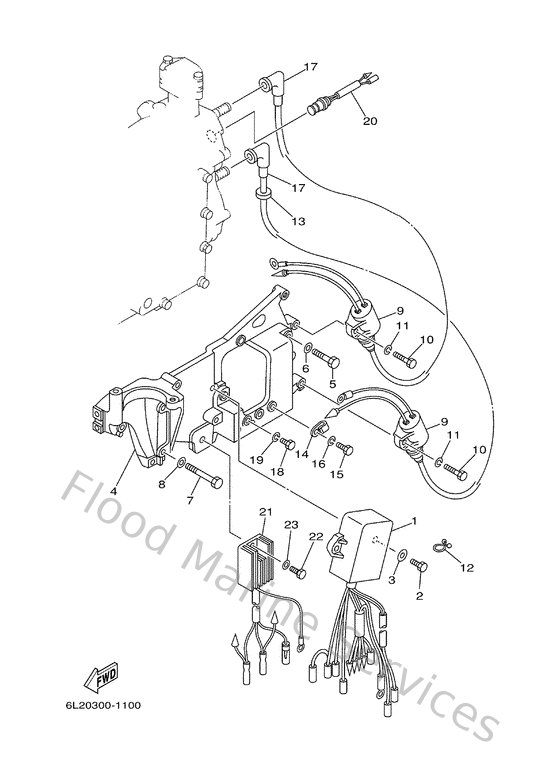

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6L2855402100
C.d.i. unit assembly
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
6L2855420294
Bracket
Loading…
↗
5
970800603000
Bolt(jf7)
Loading…
↗
7
9010106M1600
Bolt(6l2)
Loading…
↗
8
929030660000
Washer, plain (646)
Loading…
↗
9
61N855700000
Ignition coil assembly
Loading…
↗
10
970800602000
Bolt(7u8)
Loading…
↗
11
929950610000
Washer(6a1)
Loading…
↗
12
9046408M0700
Clamp
Loading…
↗
13
904802516100
Grommet(656)
Loading…
↗
14
9046506M8600
Clamp
Loading…
↗
15
970950601200
Bolt(gh1)
Loading…
↗
17
6G1823702100
Plug cap assembly
Loading…
↗
20
689825600000
Thermo switch assembly
Loading…
↗
21
6J8819600000
Rectifier & regulator assembly
Loading…
↗
22
970950601600
Bolt, hexagon deep recess
Loading…
↗
