225BETOL (1992)
Electrical 1

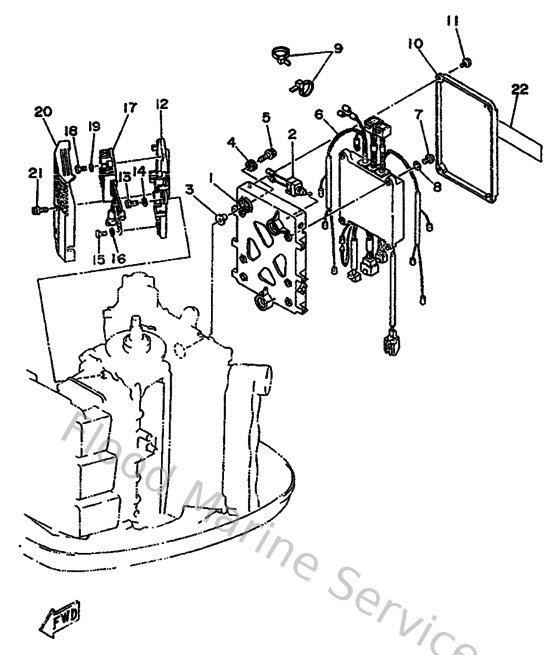

Diagram: Electrical 1
Parts List
Reference
Description
Price
2
6R38259E0000
Switch assembly
Loading…
↗
3
9038706M0300
Collar (676)
Loading…
↗
4
9048009M1200
Grommet (6a0)
Loading…
↗
5
9011906M6000
Bolt, with washer
Loading…
↗
6
6R5855400000
C.d.i. Unit Assembly
Loading…
↗
7
985800602000
Screw pan head
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
9046513M3600
Clamp(6h4)
Loading…
↗
10
6R3855370000
Cover
Loading…
↗
11
9015906M1100
Screw, with washer(6l2)
Loading…
↗
12
6R3819480094
Bracket
Loading…
↗
13
973130601600
Bolt, hexagon deep recess
Loading…
↗
15
970130601200
Bolt(gh1)
Loading…
↗
17
6R3819601000
Rectifier & regulator assembly
Loading…
↗
18
973130602500
Bolt
Loading…
↗
20
6R3819420000
Cover
Loading…
↗
21
9015906M0800
Screw, with washer(6k7)
Loading…
↗
