25JETO (1989)
Electrical 1

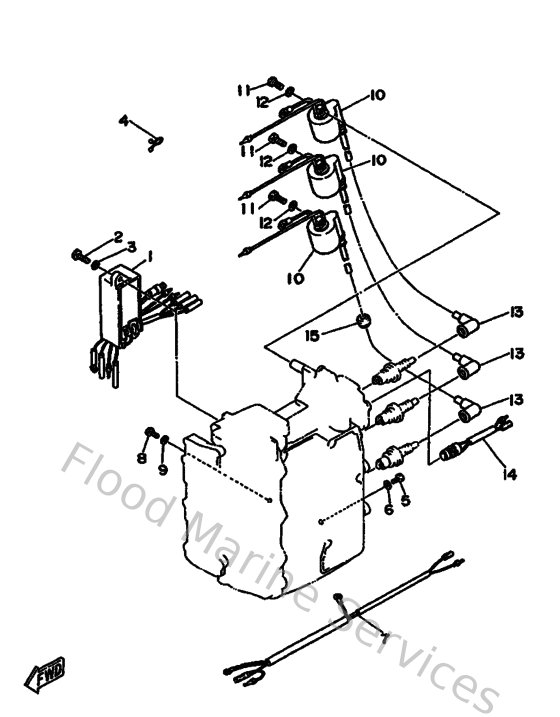

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6J885540H000
C.d.i. Unit Assembly
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
904641603900
Clamp (3y2)
Loading…
↗
5
970130601200
Bolt(gh1)
Loading…
↗
7
6J8825310000
Wire, lead
Loading…
↗
10
6J8855702000
Ignition coil assembly
Loading…
↗
11
973130602000
Bolt(7u8)
Loading…
↗
12
929950610000
Washer(6a1)
Loading…
↗
13
6G1823702000
Plug cap assembly
Loading…
↗
14
689825600000
Thermo switch assembly
Loading…
↗
15
904802516100
Grommet(656)
Loading…
↗
