25QEO (1996)
Electrical 1

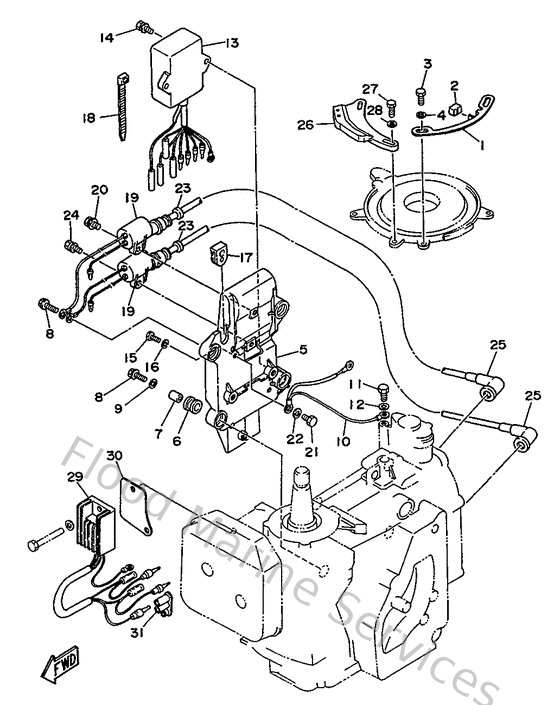

Diagram: Electrical 1
Parts List
Reference
Description
Price
2
61N441940100
Cap
Loading…
↗
3
970950601000
Bolt
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
61N855420094
Bracket
Loading…
↗
6
61N823170000
Damper, ignition coil
Loading…
↗
7
624425420000
Collar
Loading…
↗
8
9011906M9500
Bolt, with washer
Loading…
↗
9
9020106M3000
Washer, plate (6a1)
Loading…
↗
10
61N825190100
Wire, earth lead
Loading…
↗
11
970950601200
Bolt(gh1)
Loading…
↗
12
929950610000
Washer(6a1)
Loading…
↗
13
61N855400000
C.d.i. Unit Assembly
Loading…
↗
14
975950652000
Bolt(7u8)
Loading…
↗
17
6H3819220000
Grommet
Loading…
↗
18
9046513M1100
Clamp (6e5)
Loading…
↗
19
61N855701000
Ignition coil assembly
Loading…
↗
20
970800602000
Bolt(7u8)
Loading…
↗
23
904802516100
Grommet(656)
Loading…
↗
25
6G1823702000
Plug cap assembly
Loading…
↗
26
999990308600
Accelerator Cam
Loading…
↗
27
970950501600
Bolt(6a1)
Loading…
↗
28
929900560000
Washer, plain (646)
Loading…
↗
29
6J8819600000
Rectifier & regulator assembly
Loading…
↗
31
6E5825820000
Cap 1
Loading…
↗
