30DEO (2001)
Electrical 1

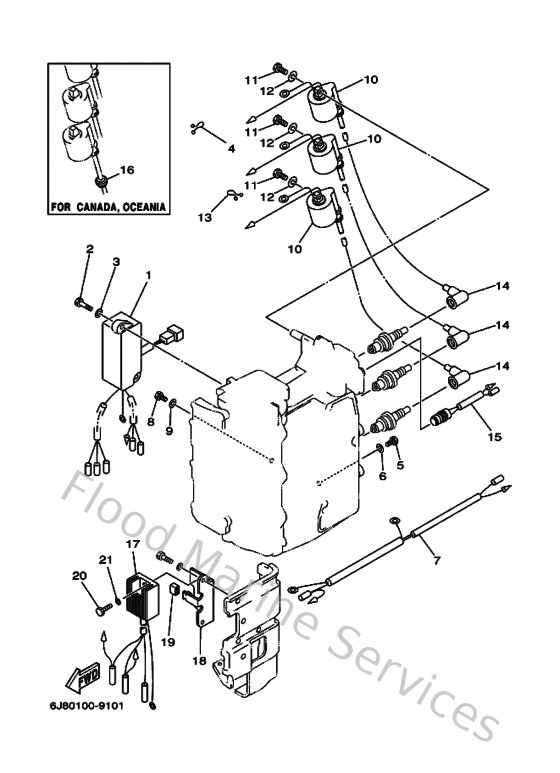

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6J885540H200
C.d.i. unit assembly
Loading…
↗
2
970950602500
Bolt
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
5
970800601200
Bolt(gh1)
Loading…
↗
10
6J8855702100
Ignition coil assembly
Loading…
↗
11
970800602000
Bolt(7u8)
Loading…
↗
12
929950610000
Washer(6a1)
Loading…
↗
13
9046405M1600
Clamp(6j8)
Loading…
↗
14
6G1823702100
Plug cap assembly
Loading…
↗
15
689825600000
Thermo switch assembly
Loading…
↗
16
904802516100
Grommet(656)
Loading…
↗
8
970950601200
Bolt(gh1)
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
11
970950602000
Bolt(7u8)
Loading…
↗
