3AMH (1990)
Electrical 1

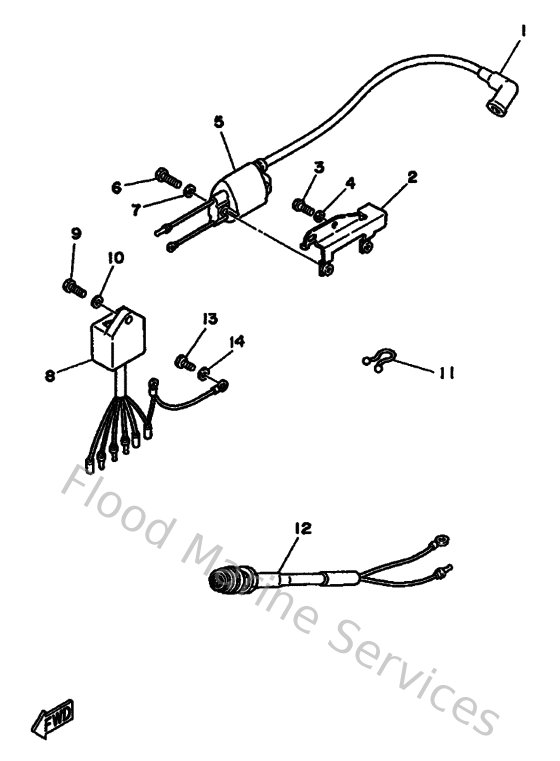

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6G1823702000
Plug cap assembly
Loading…
↗
2
6L5823160000
Bracket, ignition coil
Loading…
↗
3
970950601600
Bolt, hexagon deep recess
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
6L585570M000
Ignition coil assembly
Loading…
↗
6
925030601500
Screw, pan
Loading…
↗
8
6L585540M000
C.d.i. unit assembly
Loading…
↗
9
973130601600
Bolt, hexagon deep recess
Loading…
↗
11
904651814700
Clamp
Loading…
↗
12
6A0825500100
Stop switch assembly
Loading…
↗
13
970130601200
Bolt(gh1)
Loading…
↗
