3AMH (1993)
Electrical 1

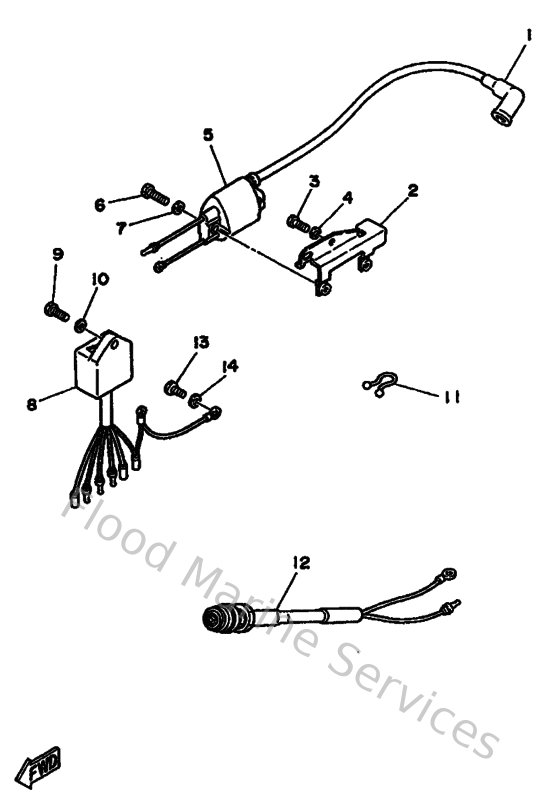

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6G1823702000
Plug cap assembly
Loading…
↗
2
6L5823160000
Bracket, ignition coil
Loading…
↗
3
970950601600
Bolt, hexagon deep recess
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
6L585570N000
Ignition coil assembly
Loading…
↗
6
985800601600
Screw pan head
Loading…
↗
8
6L585540M000
C.d.i. unit assembly
Loading…
↗
9
973950601600
Bolt, hexagon deep recess
Loading…
↗
11
904651814700
Clamp
Loading…
↗
12
6L5825500000
Stop switch assembly
Loading…
↗
13
973950601200
Bolt(gh1)
Loading…
↗
