50HM (2001)
Electrical 1

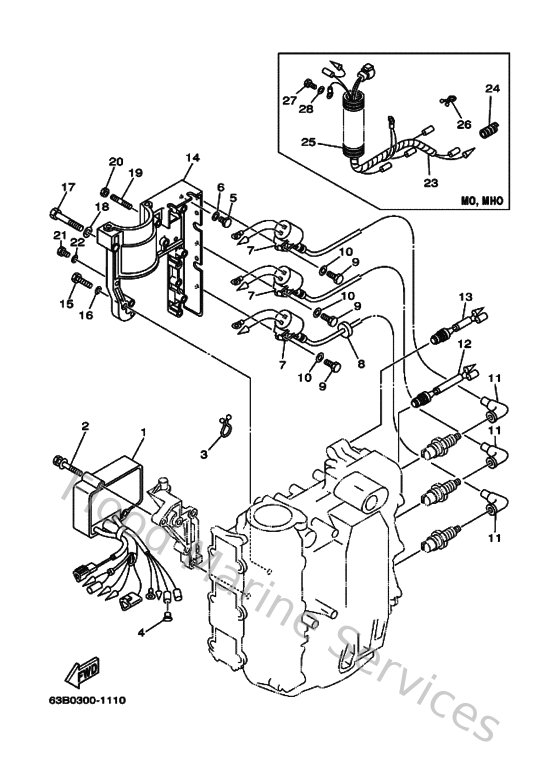

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
63D855400200
C.d.i. unit assembly
Loading…
↗
2
9011906M5100
Bolt, with washer(6h4)
Loading…
↗
3
9046415M1100
Clamp (3y2)
Loading…
↗
5
970950601400
Bolt(gj3)
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
6H5855700000
Ignition coil assembly
Loading…
↗
8
904802516100
Grommet(656)
Loading…
↗
9
970950602000
Bolt(7u8)
Loading…
↗
10
929950660000
Washer, plain (646)
Loading…
↗
11
6G1823702100
Plug cap assembly
Loading…
↗
12
689825600000
Thermo switch assembly
Loading…
↗
13
6H4825600000
Thermo switch assembly
Loading…
↗
14
6H4818220298
Bracket, starting motor
Loading…
↗
15
970950603000
Bolt(jf7)
Loading…
↗
17
970130805000
Bolt, hexagon
Loading…
↗
18
929901010000
Ybs67-10 washer, spring
Loading…
↗
19
956700664000
Bolt, stud(6h4)
Loading…
↗
20
9017906M2400
Nut(6j8)
Loading…
↗
