55BM (2000)
Electrical 1

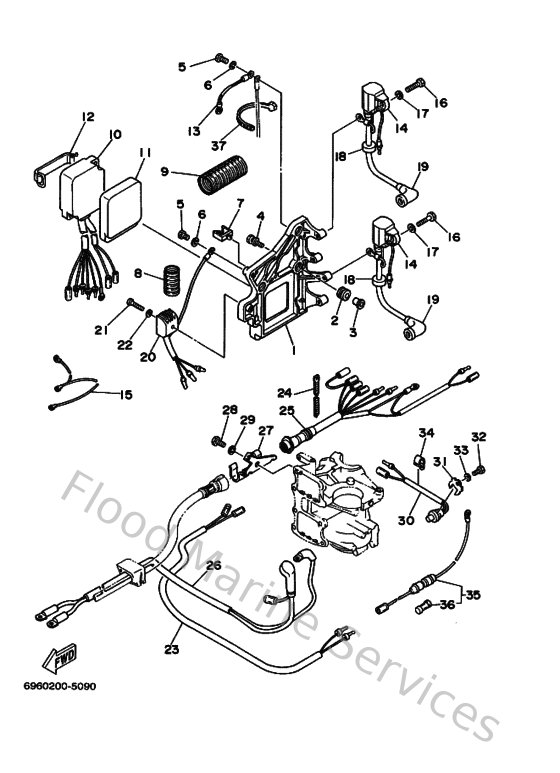

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
663855420194
Bracket
Loading…
↗
2
6A0823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
4
9011906M5900
Bolt, with washer
Loading…
↗
5
970800601200
Bolt(gh1)
Loading…
↗
6
929950610000
Washer(6a1)
Loading…
↗
7
9046407M1000
Clamp (6h3)
Loading…
↗
8
6G5835570000
Tube
Loading…
↗
9
6N7835570000
Tube
Loading…
↗
10
697855400000
C.d.i. unit assembly
Loading…
↗
11
697855470000
Damper
Loading…
↗
12
663821310100
Band
Loading…
↗
13
662825190000
Wire, earth lead
Loading…
↗
14
697855700000
Ignition coil assembly
Loading…
↗
15
697825190000
Wire,earth lead
Loading…
↗
16
970950602000
Bolt(7u8)
Loading…
↗
17
929950660000
Washer, plain (646)
Loading…
↗
18
904802516100
Grommet(656)
Loading…
↗
19
6G1823702100
Plug cap assembly
Loading…
↗
20
664819706100
Rectifier assembly
Loading…
↗
21
978800503000
Ybs86-530 screw,panhead
Loading…
↗
22
929900510000
Ybs67-5 washer, spring
Loading…
↗
23
697819710100
Wire, lead
Loading…
↗
24
80L263970000
Band
Loading…
↗
25
697825901200
Wire harness assembly
Loading…
↗
26
697821051200
Battery cable
Loading…
↗
27
697825940000
Clamp
Loading…
↗
28
970950801600
Bolt, hexagon deep recess
Loading…
↗
29
929900860000
Washer, plain (663)
Loading…
↗
30
688825600000
Thermo switch assembly
Loading…
↗
31
663825880000
Plate
Loading…
↗
32
970130601000
Bolt(63v)
Loading…
↗
34
9046506M8600
Clamp
Loading…
↗
35
682821501000
Fuse holder assembly
Loading…
↗
36
682821510000
Fuse
Loading…
↗
37
9046513M3900
Clamp(6e8)
Loading…
↗
