6DEM (1990)
Electrical 1

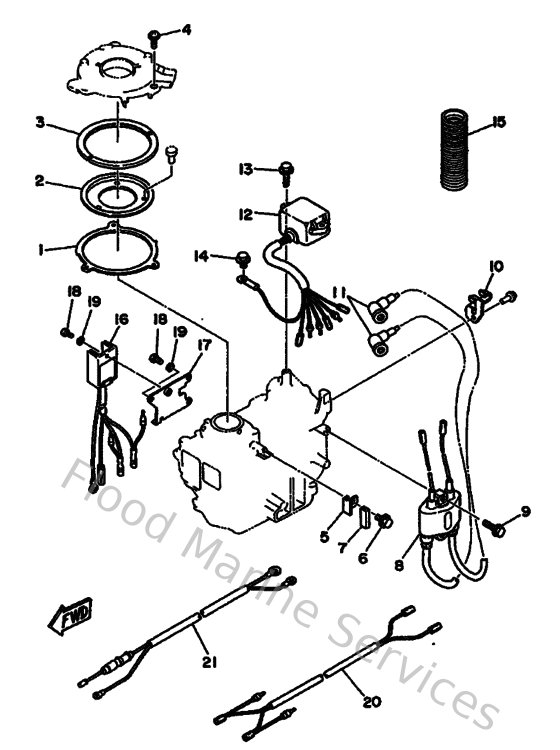

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6G1416110000
Retainer, magneto base 1
Loading…
↗
2
6G1416120000
Retainer, magneto base
Loading…
↗
3
695416130000
Plate, base friction
Loading…
↗
5
6G1416150000
Stopper, magneto base
Loading…
↗
6
9010506M2300
Bolt (6g1)
Loading…
↗
7
6G1441940000
Cap
Loading…
↗
8
6G1855700000
Ignition coil assembly
Loading…
↗
9
9010506M2400
Bolt (6g1)
Loading…
↗
10
9046508M1700
Clamp (6G1)
Loading…
↗
11
6G1823702100
Plug cap assembly
Loading…
↗
12
696855401100
C.d.i. unit assembly
Loading…
↗
15
6G1835570000
Tube
Loading…
↗
16
6J8819600000
Rectifier & regulator assembly
Loading…
↗
17
6N0H19150000
Plate, regulator fitting
Loading…
↗
18
973950601200
Bolt(gh1)
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
20
6G1825531000
Extension, wire lead
Loading…
↗
21
6J8821051000
Battery cable
Loading…
↗
