E60HELH (2000)
Electrical 1

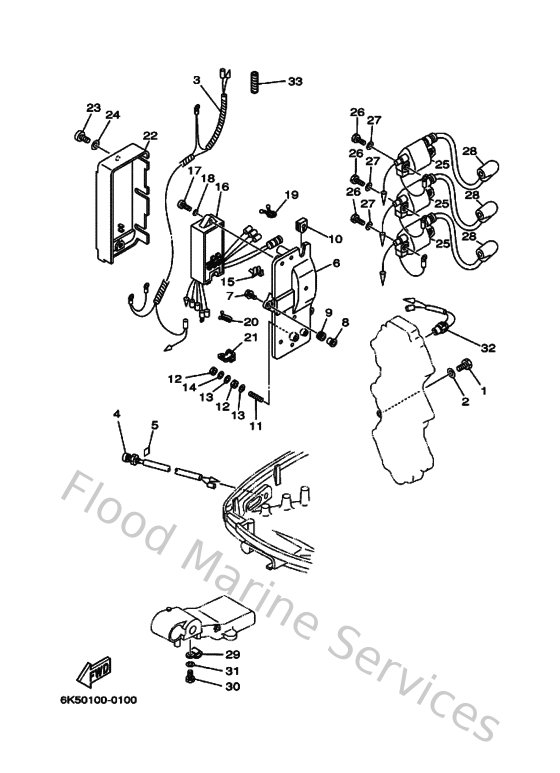

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
970130601200
Bolt(gh1)
Loading…
↗
2
929030660000
Washer, plain (646)
Loading…
↗
3
6K5825310000
Wire, lead
Loading…
↗
4
6H4854110000
Overheat warning lamp
Loading…
↗
6
6H3855420094
Bracket
Loading…
↗
7
9010506M1400
Bolt (6e0)
Loading…
↗
8
9038706M4300
Coller (6e9)
Loading…
↗
9
9048013M2400
Grommet (6e9)
Loading…
↗
10
6H3819220000
Grommet
Loading…
↗
11
9011606M0700
Bolt, stud (688)
Loading…
↗
12
9538R0670000
Nut
Loading…
↗
13
929900620000
Ybs66-6 washer, plain
Loading…
↗
14
929900610000
Washer(6a1)
Loading…
↗
15
9046404M1200
Clamp (6h3)
Loading…
↗
16
6H3855401200
C.d.i. unit assembly
Loading…
↗
17
978800602500
Screw, pan head(6b0)
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
904651814700
Clamp
Loading…
↗
20
9046412M1700
Clamp(6j8)
Loading…
↗
21
9046407M1000
Clamp (6h3)
Loading…
↗
22
6H3819160000
Cover, terminal
Loading…
↗
23
978850601200
Screw, pan head(62j)
Loading…
↗
24
929950660000
Washer, plain (646)
Loading…
↗
25
6H3855701000
Ignition coil assembly
Loading…
↗
26
970130602500
Bolt(62y)
Loading…
↗
28
663823700100
Plug cap assembly
Loading…
↗
29
9046506M9000
Clamp
Loading…
↗
30
970800601200
Bolt(gh1)
Loading…
↗
31
929030610000
Washer(6a1)
Loading…
↗
32
688825601000
Thermo switch assembly
Loading…
↗
33
9044610M0200
Tube (6e5)
Loading…
↗
