F100AET (1999)
Electrical 1

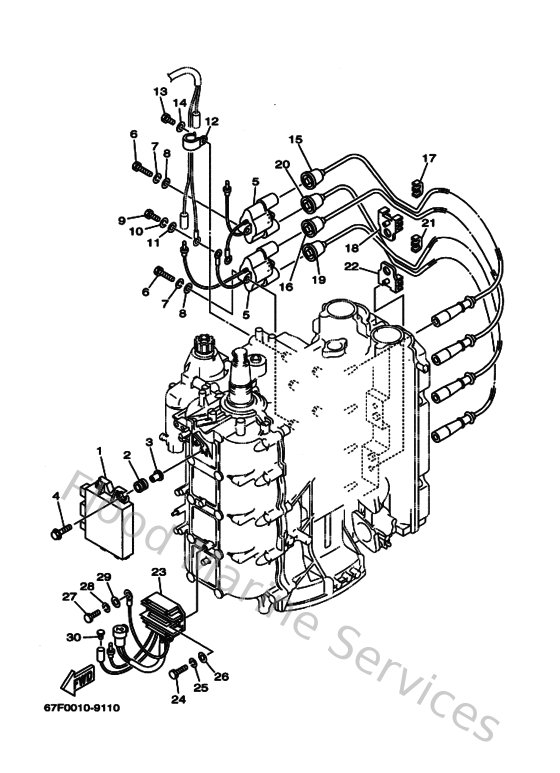

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
67F855400000
C.d.i. unit assembly
Loading…
↗
2
6A0823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
4
9011906M5900
Bolt, with washer
Loading…
↗
5
67F855700000
Ignition coil assembly
Loading…
↗
6
970950603000
Bolt(jf7)
Loading…
↗
7
929950610000
Washer(6a1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
970950602000
Bolt(7u8)
Loading…
↗
12
904650802800
Clamp (1e6)
Loading…
↗
13
970950601200
Bolt(gh1)
Loading…
↗
14
929950660000
Washer, plain (646)
Loading…
↗
15
67F823410000
Cord, high tension 1
Loading…
↗
16
67F823420000
Cord, high tension 2
Loading…
↗
17
67F823610000
Clamp, cord
Loading…
↗
18
67F823620000
Clamp, cord 2
Loading…
↗
19
67F823430000
Cord, high tension 3
Loading…
↗
20
67F823440000
Cord, high tension 4
Loading…
↗
23
67F819600000
Rectifier & Regulator assembly
Loading…
↗
24
9010106M2700
Bolt
Loading…
↗
27
970800602000
Bolt(7u8)
Loading…
↗
30
703821190000
Cover, lead wire
Loading…
↗
