F20AM (2000)
Electrical 1

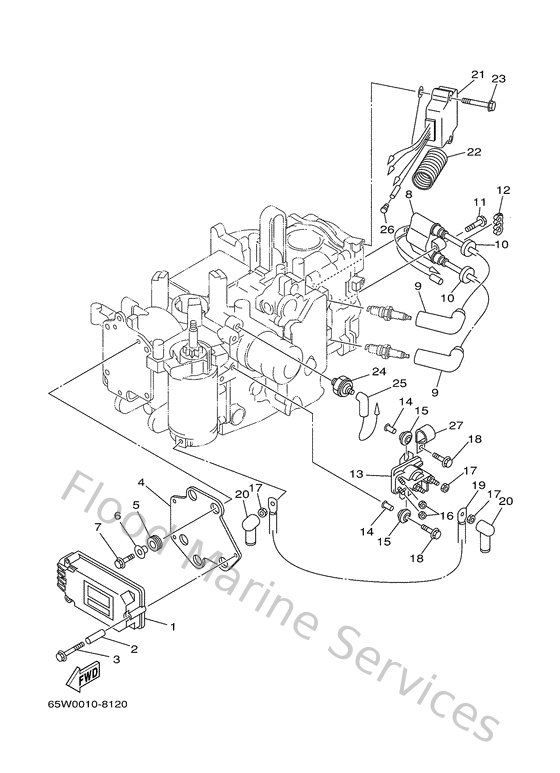

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
65W855401100
C.d.i. unit assembly
Loading…
↗
2
65W861290000
Collar
Loading…
↗
3
65W8252V0000
Screw, special
Loading…
↗
4
65W855420000
Bracket
Loading…
↗
5
65W855470000
Damper
Loading…
↗
6
65W861291000
Collar
Loading…
↗
7
65W8252V1000
Screw, special
Loading…
↗
8
65W855700100
Ignition coil assembly
Loading…
↗
9
6G8823703000
Plug cap assembly
Loading…
↗
10
904802516100
Grommet(656)
Loading…
↗
11
975950653000
Bolt, hexagon w/w deep recess
Loading…
↗
12
9046407M0500
Clamp (6g5)
Loading…
↗
18
9011906M4100
Bolt, with washer(6r6)
Loading…
↗
24
65W825040000
Oil pressure switch assembly
Loading…
↗
25
65W821270000
Wire, lead 2
Loading…
↗
27
65W8339X0000
Clamp, cord
Loading…
↗
