L130BETOL (2000)
Electrical 1

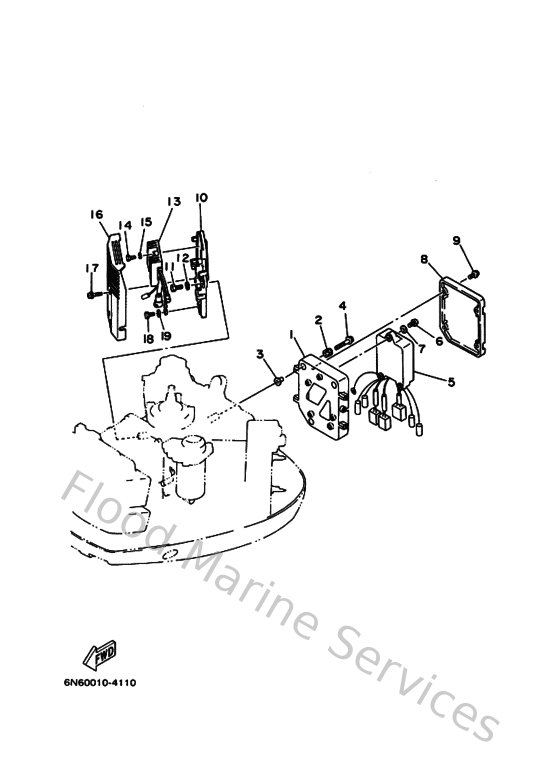

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6N785542011S
Bracket
Loading…
↗
2
6A0823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
4
9011906M5900
Bolt, with washer
Loading…
↗
5
6N7855400100
C.d.i. unit assembly
Loading…
↗
6
985800602000
Screw pan head
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
6N7855370000
Cover
Loading…
↗
9
9015906M1100
Screw, with washer(6l2)
Loading…
↗
10
6N7819480094
Bracket
Loading…
↗
11
970140601600
Bolt, hexagon deep recess
Loading…
↗
12
929030660000
Washer, plain (646)
Loading…
↗
13
6R3819600000
Rectifier & regulator assembly
Loading…
↗
14
970130602500
Bolt(62y)
Loading…
↗
16
6R3819420000
Cover
Loading…
↗
17
9015906M0800
Screw, with washer(6k7)
Loading…
↗
18
970130601200
Bolt(gh1)
Loading…
↗
